newspaper board offset printing machine
- 30 Pack / Packs per Month
- tianjin port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Condition | New | Application | Other, Machinery & Hardware | |
Packaging Type | Cartons | Packaging Material | Paper, Plastic, Wood | |
Automatic Grade | Semi-Automatic | Driven Type | Electric | |
Voltage | 380 | Power | 28.0km | |
Place of Origin | Hebei, China | Brand Name | hongsheng | |
Model Number | 420 mm2000mm 2600mm | Dimension(L*W*H) | 3500mmx3100mmx2500mm | |
Weight | 15T | Certification | CE | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
newspaper board offset printing machine
Model | ZSYK400-2400 | ZSYK400-2600 |
Max.speed (sheet/min) | 200 | 180 |
Max.feeding size (mm) (BXA) | 1200*2500 | 1200*2500 |
Min.feeding size (mm) (BXA) | 320*600 | 320*600 |
Max.printing size (mm) (BXA) | 1200*2400 | 1200*2300 |
skip feeding (mm) | 1500*2400 | 1500*2500 |
Standard printing plate thickness (mm) | 7.2 | 7.2 |
Min.slotting distnce (frontal knife)(mm) | 130*130*130*130 | 130*130*130*130 |
Min.slotting distnce (back knife)(mm) | 230*60*230*60 | 230*60*230*60 |
Max.depth(F) (mm) | 400 | 400 |

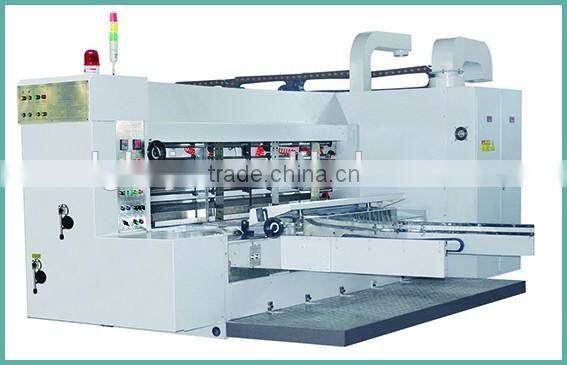

Machine
1.Lead edge feed syatem
2.YVF main motor
3.Motorized setting & adjusting
4.Scram button ensure safely
5.Electronic counter easy to set production quantity
6.Spray-cycle gear lubrication
7.Automatic cycle transmit water-based ink
8.Carburzing & hard surfacing alloy steel main drive gear
9.Quality steel rollers,surface with hard chromium plating,
high tenacity of shaft with dynamic balance correction
10.Selectable touch screen operation
11.Selectable vibrating machine & auto stacker
Feeder Unit:
1.Lead edge feeder system,with suction blower & dust blower,feed sheets perfectly
2.Row by row double feeder roimprove the accuracy of feeding sheets
3.Baffles motorized drive left & right,separately or together
4.Adjust the blowing rate of suction blower by frequency control of motor speed
5.Skip feeding function to feed bigger size sheets
6.Air suction dust removal devices,can improve the quality of printing,reduce the number of washing printing plate

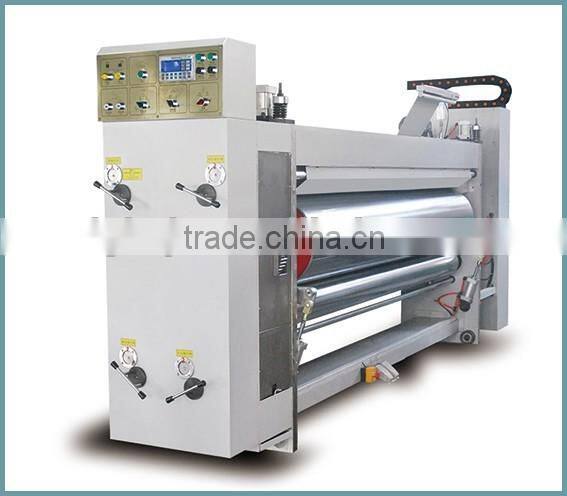

Printing Unit:
1.Printing plate can be either hitched or stuck on the printing roll,footswitch can offer help 2.Rubber roll is made up of seamless steel tube surface covered with abrasive rubber,is good to transfer ink
3.Anilox roll is metallic roll (can choose ceramic roll),delayed function,working together with feeder unit system,up/down automatically in order
4.Phase adjustment by motor,digital display & memory function
5.Printing roll drive left & right motorized,range ±10mm
6.Electromagnetic lock for phase position,air lock for each two units
7.Pneumatic diaphragm pump automatic cycle for ink,alarm ring if abnormal inking & feeding automatically if lack of ink

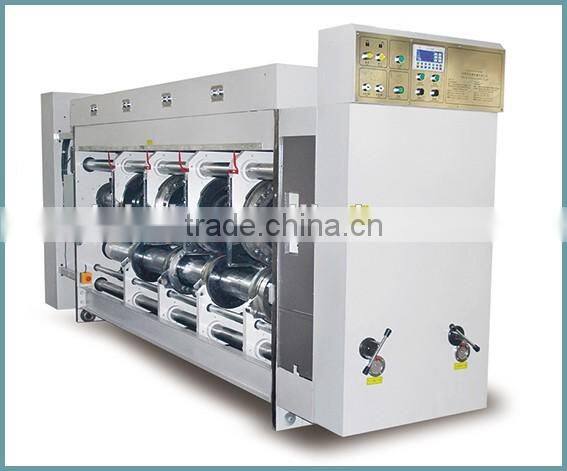

Sotter Unit:
1.Pre-creaser roll,creaser roll and slotter roll through second grinding,more smoothly when axial movement
2.Slotting knife & pre-creaser/creaser wheel move left/right synchronously by motor,sustained by lead screw
3.Carton height adjustment by motor(or computer),
4 slotting knives be adjusted synchronously
4.Phase adjustment by motor,digital display & memory function
5.Electromagnetic lock for phase position ,air lock for each two units

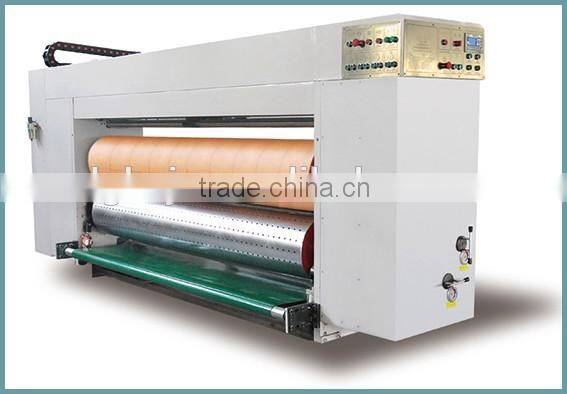

Cutter unit:
1.Upper roll covered with high grade rubber & rubber is detachable and replaceable
2.Upper roll move left/right,by mechanical control,range-40~+40mm
3.Under cutting roll phase,motorized digital display,range 360 degree;move left/right,motorized,digital display,range-10~+10mm
4.Upper roll up/down automatically & by motor,can set the range in advance
5.Speed difference compensation device,make sure the speed is same
6.Motorized grinding(repairer)anvil cover
7.Electromagnetic lock for phase position,air lock for each two units

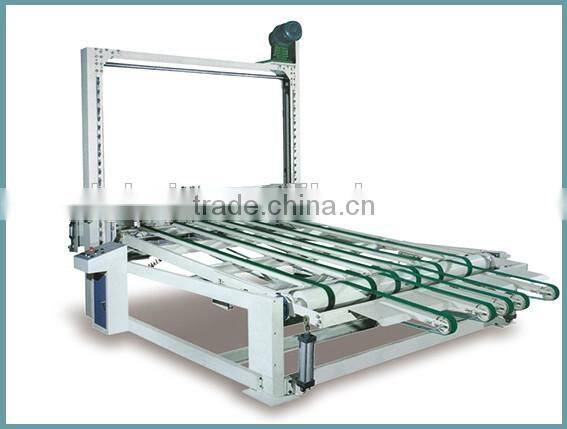

Stacker Unit:
1.Control box on the connection arms
2.Connection arms can be operated manually or automatically
3.Stacked height is up to 1700mm
4.Convey or bed's height auto or manual adjusted according to stacked height
5.Selectable vibrating machine & auto stacker(get rid of waste before stacking)
Dongguang Country Hongsheng Carton Machinery Factory is a well known enterprise engaged in the professional production of various kinds of carton machines. Our products are complete in specificati-
on and model, and can meet the needs of different users. Our main products are corrugated board p-
roduction lines, ordinary printing presses, high speed printing presses, single facers, thin blade mac-
hines, and rotary die cutting machines, In the spirit of "excellence and continuous pursuit of perfectio-
n", on the basis of"ensuring quality and service", we pay more attention to corporate reputation and
always adhere to the "reputation first" principle.
1. Packing type:carton or wooden case , also be packaged according to customer requirements.
2. Modes of transportation:by sea ,by air or land transportation, Of course, a small amount can also by Express.
If you are interested in our products, please feel free to contact us.
Welcome to vist our factory at any time!
Add:Hebei province Dongguang development zone
Fax:0317-7669161
Tel:0317-7669167
QQ:1606466954
MP:13582724787
http://dghsjx.en.china.cn
