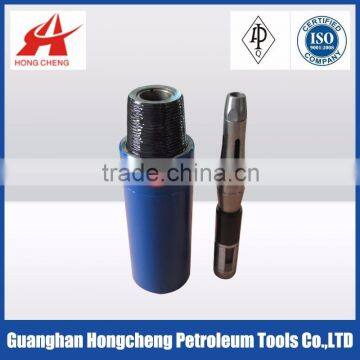

High Quality API Drilling Tool IBOP 15000psi Drop-in Check Valve NC38
- Tianjin Port; Shenzhen Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Quality API Drilling Tool 15000psi IBOP Kelly Valve NC50
-
High Quality API Drilling Tool 15000psi IBOP Kelly Valve 3 1/2 in
-
Best Saling High Quality API Drilling Tool 15000psi IBOP Kelly Valve 3 in
-
High Quality API Drilling Tool 15000psi IBOP Kelly Valve 2 1/2 in
-
HOT Sale high quality kelly cock valve 2 1/2 in
-
api kelly valve/ kelly cock/ kelly cock valve 3 in
Product Details
| Place of Origin | Sichuan, China | Brand Name | Hongcheng | |
| Model Number | FTZ121/35-NC38 | Type | Bop | |
| Machine Type | Drilling Equipment | Certification | API | |
| Material | Other, 40CrNiMo, 4145H & 4137H | Processing Type | Forging | |
| Use | Well Drilling |
Product Description
1. High Strength
Max working pressure: 15000psi (this type is not in the list below, need reservation)
2. API Standard
This product is designed and manufactured in accordance with the petroleum and natural gas industry standard of People’s Republic of China Drilling Tool Check Valve (SY/T 5215-2005) and API7-1 standard.
3. Excellent Cost Performance
As an original manufacturer, we are sure that we can supply the tool you need in most reasonable price.
Major technical parameters and dimensions:
Spec. & model | FTZ162/35-NC35 | FTZ121/35-NC38 |
Landing joint OD | Φ162 | Φ121 |
Length of landing joint | 530 | 510 |
Thread of landing joint | NC50 (410×411) | NC38 (310×311) |
Valve spool OD | Φ68.3 | Φ54 |
Length of valve spool | 480 | 480 |
Valve spool ID | 28.5 | Φ19 |
Weight of valve spool | 4.43 | 4.8 |
Max operating pressure | 35MPa | 35MPa |
Required ID of drill stem | ≥Φ69.8 (2 1/4 in.) | ≥Φ55.56 (2 3/16 in.) |
