Sand making line with production process flow chart

Specifications

Sand Washing Plant consists of vibrating feeder, jaw crusher, vertical shaft impact crusher (sand making machine), vibrating screen, sand washing machine, belt conveyor and centrally electric controlling system, etc. The designed capacity is from 50t/h to 500t/h. After many years’ research, our company has developed an internationally advanced vertical shaft impact crusher, which can be used together with other machinery as a complete sand making flow. This design racks a leading role in the same industry.

Large piece of stones sent by vibrating feeder uniformly to the jaw crusher rough break, coarse material sent into the break after fine jaw crusher broken again, broken by the material belt conveyor sent to vibrating screen screening, it would return to the vertical shaft impact crusher crusher to crush within the requirements, if not, sent to the small jaw crusher to break again. The materials out of the sand machine, to return to the new screening sieve, the required sand into sand washing machine for cleaning, after cleaning the conveyor belt conveyor namely after finished product for the finished products, mainly for sand mixed with the material, into the sand machine was broken again, this production line is eventually form the two broken closed-circuit circulation, also can do many kinds of configuration according to the needs of users.

Introduction of Vibrating Feeder:

Vibrating feeder made by our company are liner vibrating feeder series; it can feed material continuously and evenly for crushing machinery, and screen the materials.

Application:

1)Vibrating feeder can feed block or granule materials from the material storage to charging device evenly and continuously. It can realize even feeding for crushers in sandstone production line and make rough screening for materials.

2) Widely applied in combined operation of crushing and screening in the industries like metallurgy, mine, mine selection, building materials, chemicals, etc.

Introduction of Jaw Crusher:

A Fine Jaw Crusher is one of the main types of secondary crushers in a mine or ore processing plant.

Application of Jaw Crusher Machinery:

1) They are widely used in the works of mine, smelting, building materials, road, railway, irrigation, chemical industry, etc.

2) The crusher is applicable for the rough and medium crushing of rocks and ores with a compressive strength less than 320MPA. It is the preferred equipment of secondary crushing.

Introduction of Impact Crusher:

The PF series of impact crusher can process materials with side length between 100-500mm and maximum compression strength of 350MPA. PF series impact crusher is designed for crushing the semi-hard materials and big throughput and small granularity of materials.

Application of Impact Crusher:

Impact Crusher is widely applied in building materials, chemicals, coal and other industries, for coarse, medium, and fine crushing of the medium hardness brittle materials, such as limestone in cement plant, dolomite, shale, sandstone, coal, asbestos, graphite, and rock salt etc.

Introduction of Vibrating Screen:

The YK series of vibrating screen moves on a circular motion. It is a multi-layer and high efficient vibrating screen. Advantages are: stable structure, strong exciting force, high efficiency, low noise pollution, easy to maintain and durability. Circular vibrating screen has been widely used in mine, construction, transportation, energy and chemical industries.

Characteristics:

1) stable structure and strong exciting force

2) high efficiency and little noise pollution

3) handy maintenance and durability 4) Materials blocked in meshes can be automatically out; 5) Simple structure and easy to disassemble and replace; 6) Less electricity power consumption.

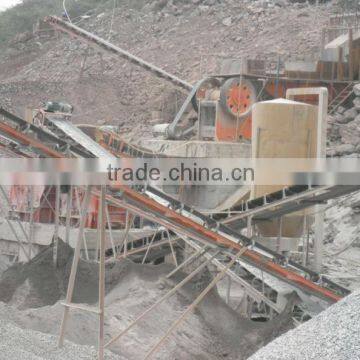

Sand making process Working Sites:

How about the quality of your  Rock Crusher Production Line ?

How about price of your Rock Crusher Production Line ?

How about the after-sale service of your company?

• Our engineer is aviliable to installation Rock Crusher Production Line overseas.
• The guarantee period of our Rock Crusher Production Line is one year.
