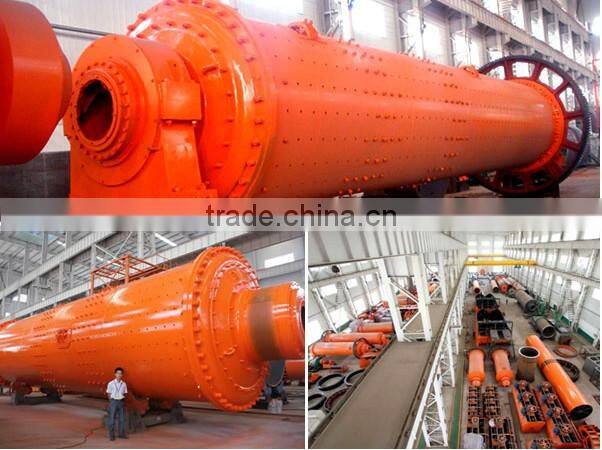

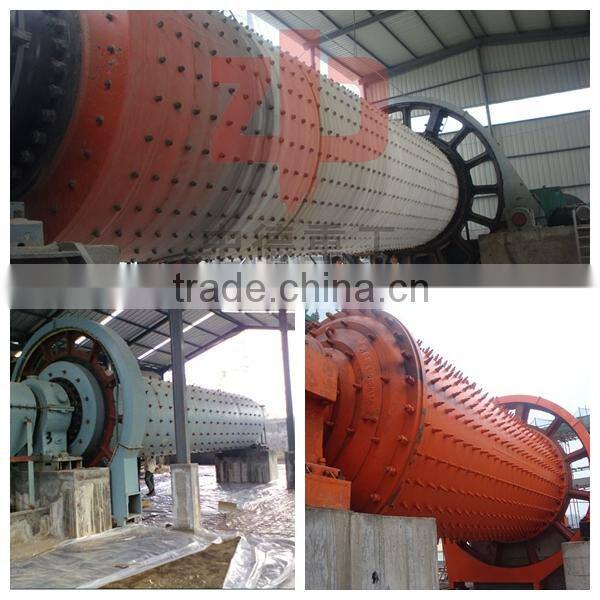

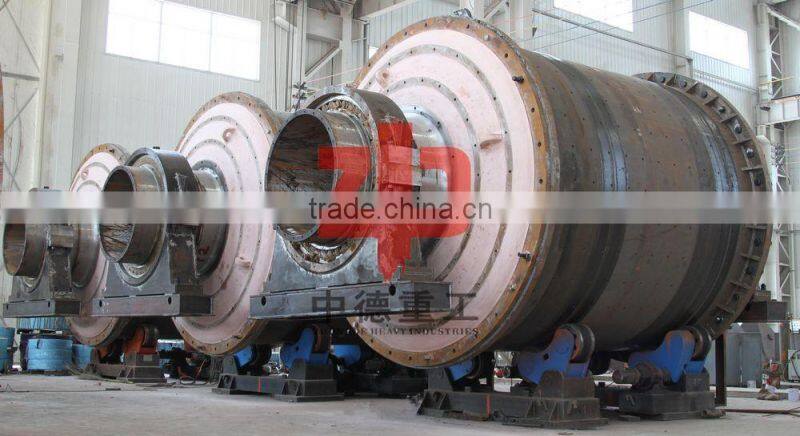

henan lime podwer ball mill ---manufacturing equipment plant/fine podwer mill/samll ball mill for sale
- 200 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Henan energy saving equipment ball mill for silica sand ,oron ore ,limestone,ilmenite,aluminium ore
-
henan high quality iron ore wet grinding ball mill for sale/hard stone grinding mill ball mill
-
Ceramic ball mill, ball mill price,small ball mill for sale
-
ball mill widely used in mining field ball rolling mill
-
CE Ball Mill price / cement ball mill / small ball mill from China
-
for ore seperator with high quality and best price Gravity spiral chute
Product Details
Condition | New | Type | Ball Mill | |
Motor Type | AC Motor | Power(W) | 90kw | |
Capacity(t/h) | 7~3.1t/h | Place of Origin | Henan, China | |
Brand Name | Zhongde | Model Number | MQS-1530 | |
Dimension(L*W*H) | M) Dimension | Weight | 19.5t | |
Certification | ISO9001:2008 CE BV | Warranty | 1 Year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description
Brief introduction of ball mill:
Ball mill can achieve selective crushing, commonly used in the industries, which require final product to be uniform size, little over-crushed particle size, such as metal rock, quartz sand, albite, potash feldspar, manual construct sand making, water-coal-slurry making industry.
The differences between rod mill and ball mill:
The main difference is: the grinding medium of rod mill is a long round rod, while the grinding medium of ball mill is ball. They are also different in the grinding form of grinding medium. The crushing process of rod mill is realized by line contact between rods. Thus the crushing is selective, and then small ones. So, compared to ball mill, the fineness of final products processed by rod mill is even.
Model | Cylinder | Effective volume (m3) | Max.ball loading(t) | Speed (r/min) | Capacity (t/h) | Discharging size(mm) | Main motor ( KW ) | Total weight (t) | |
Diameter(mm) | Length(mm) | ||||||||
MQY-1845 | 1830 | 4500 | 10.5 | 19 | 26.8 | 15.5~6 | 0.3~0.074 | 180 | 35.5 |
MQY-2130 | 2100 | 3000 | 9.2 | 16 | 23.8 | 18~5.8 | 0.3~0.074 | 210 | 43 |
MQY-2136 | 2100 | 3600 | 11 | 20 | 23.8 | 22~6.8 | 0.3~0.074 | 210 | 47 |
MQY-2145 | 2100 | 4500 | 13.8 | 25 | 23.8 | 25~8 | 0.3~0.074 | 280 | 54 |
MQY-2230 | 2200 | 3000 | 10 | 18.5 | 21.3 | 23~6.9 | 0.3~0.074 | 210 | 48 |
MQY-2245 | 2200 | 4500 | 15.2 | 28 | 21.3 | 26.8~8.5 | 0.3~0.074 | 280 | 52 |
MQY-2430 | 2400 | 3000 | 12 | 22 | 21.3 | 26~7 | 0.3~0.074 | 245 | 51 |
MQY-2436 | 2400 | 3600 | 14 | 26 | 21.3 | 33.5~8.8 | 0.3~0.074 | 280 | 58 |
MQY-2445 | 2400 | 4500 | 17.8 | 30 | 21.6 | 42~11 | 0.3~0.074 | 320 | 69 |
MQY-2460 | 2400 | 6000 | 24 | 44 | 21.7 | 56~14.5 | 0.3~0.074 | 480 | 78 |
MQY-2736 | 2700 | 3600 | 18 | 33 | 20.7 | 54~11.7 | 0.3~0.074 | 400 | 86 |
MQY-2740 | 2700 | 4000 | 20.6 | 38 | 20.7 | 60~13 | 0.3~0.074 | 400 | 92 |
MQY-2745 | 2700 | 4500 | 23.2 | 43 | 20.7 | 67.5~14.5 | 0.3~0.074 | 480 | 98 |
MQY-2750 | 2700 | 5000 | 25.8 | 48 | 20.6 | 75~16 | 0.3~0.074 | 500 | 106 |
MQY-2760 | 2700 | 6000 | 31 | 57 | 20.6 | 90~19.5 | 0.3~0.074 | 630 | 116 |
MQY-3040 | 3000 | 4000 | 25.7 | 47 | 19 | 78~16.5 | 0.3~0.074 | 500 | 108 |
MQY-3064 | 3000 | 6400 | 40.2 | 74 | 19 | 125~26 | 0.3~0.074 | 800 | 138 |
MQY-3245 | 3200 | 4500 | 32 | 59 | 18.2 | 95~21.6 | 0.3~0.074 | 630 | 126 |
MQY-3254 | 3200 | 5400 | 38 | 73 | 18.2 | 114~25.9 | 0.3~0.074 | 800 | 138 |
MQY-3270 | 3200 | 7000 | 50.6 | 93 | 18.2 | 148~30.2 | 0.3~0.074 | 1250 | 150 |
MQY-3645 | 3600 | 4500 | 40 | 75 | 18 | 136~24.3 | 0.3~0.074 | 1000 | 144 |
MQY-3650 | 3600 | 5000 | 46 | 86 | 18 | 151~28.1 | 0.3~0.074 | 1250 | 152 |
MQY-3660 | 3600 | 6000 | 54 | 102 | 18 | 181~32.4 | 0.3~0.074 | 1250 | 163 |
MQY-3685 | 3600 | 8500 | 79 | 131 | 18 | 256~45.8 | 0.3~0.074 | 1800 | 252 |
MQY-4060 | 4000 | 6000 | 70 | 126 | 16.9 | 226~40.5 | 0.3~0.074 | 1500 | 203 |
MQY-4067 | 4000 | 6700 | 78 | 136 | 16.9 | 252~45 | 0.3~0.074 | 1600 | 206 |
MQY-4361 | 4270 | 6100 | 80 | 144 | 15.7 | 258~46 | 0.3~0.074 | 1850 | 215 |
MQY-4564 | 4500 | 6400 | 95 | 172 | 15.6 | 306~54 | 0.3~0.074 | 2000 | 280 |
MQY-5064 | 5030 | 6400 | 120 | 216 | 14.4 | 386~68 | 0.3~0.074 | 2600 | 320 |
MQY-5083 | 5030 | 8300 | 152 | 266 | 14.4 | 500~88 | 0.3~0.074 | 3300 | 403 |
MQY-5585 | 5500 | 8500 | 187 | 338 | 13.8 | 615~108 | 0.3~0.074 | 4500 | 525 |
ball mill manufacturing process:
Our Services of ball mill:
- Installation and adjustment of ball mill: The installation of our ball mill is needed. Technicist of ball mill will provided by supplier for buyer to assist the work such as weding connection of shell body, equipment installation, adjustment, training, etc.
- Quality Guarantee of ball mill: Three-guarantees of ball mill and warrantly period is one year.
- Technical support of ball mill is provided from the beginning to the end.
- Spare parts of ball mill are serviced for sale in the whole year.
Company Information
Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959. Over the past 50 years, Zhongde has made significant contribution to the economic development in China. In 1995, it took the lead in changing into the joint stock company, which had brought a rapid development to the company. In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park, Luoyang city, the middle of China.
We are a professional manufacturer of mining equipments, such as crusher, mining mill, tube mill, rotary kiln, cooler, rotary dryer, magnetic separator, flotation machine, thickener, etc. Our machines are widely used in the fields of mine, smelting, chemicals, building materials, coal, refractory materials, ceramics, etc. Moreover, technological designs on program, process flow, standard& non-standard parts are also provided from the beginning to the end for clients.
In 2010, we have accessed the ISO9001:2008 certification, and in 2012 we have acquired the BVQI certificate. To establish the business with credit and honesty is our management belief all the time.
Packaging & Shipping
How about the quality of your ball mill?
- Our ball mill manufactured strictly accordin to national and international standard.
- We take a test on every ball mill before delivery.
How about price of ball mill?
- We can give the lowest price of the ball mill than market one.
- We do quotation of ball mill as soon as possible for any custome.
- Discount of ball mill can be given according to quantity.
How about the after-sale service of your company?
- Our engineer is aviliable to installation ball mill overseas.
- The guarantee period of our ball mill is one year.
should any of these items be of interest to you,contact us please!
