brick making machine mini cement plant ball mill
USD $20,000 - $120,000
/ Set
1 Set(Min.Order)
- 150 Set / Sets per Month
- Tianjin Qingdao Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
marble ball concrete blocks machine ball mill grinding media
-
HIgh quality and good price ball mill grinding media
-
Ball mill grinding media machine brick making machine ball mill for sale
-
cement production line forged steel balls for ball mill
-
gold dredge for sale used grinding machine ball mil
-
Ball mill price energy mineral equipment ball mill for sale
Product Details
| Condition | New | Type | Ball Mill | |
| Motor Type | AC Motor | Power(W) | - | |
| Capacity(t/h) | 2.8-800 | Place of Origin | Henan, China | |
| Brand Name | Zhongde | Model Number | Variety | |
| Dimension(L*W*H) | - | Weight | - | |
| Certification | ISO CE BV certificate | Warranty | One Year, 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Application:
Ball mill is the key equipment for grinding after the crush process, and it is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.
It also can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

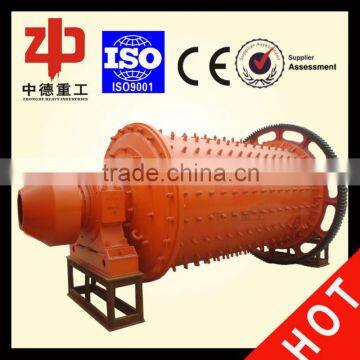

Structure of Ball mill:
The machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control).
The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-
resistance.
Technical parameters:
| Model | Diameter of cylinder(mm) | Length of cylinder(mm) | Effective volume(m3) | Max.ball loading(t) | Speed(r/min) | Capacity(t/h) | Discharging size(mm) | Main motor(kw) |
| MQY-1530 | 1500 | 3000 | 4.5 | 8 | 30 | 6.3-2.8 | 0.3-0.074 | 90 |
| MQY-1845 | 1830 | 4500 | 10.5 | 19 | 26.8 | 15.5-6 | 0.3-0.074 | 180 |
| MQY-2130 | 2100 | 3000 | 9.2 | 16 | 23.8 | 18-5.8 | 0.3-0.074 | 210 |
| MQY-2145 | 2100 | 4500 | 13.8 | 25 | 23.8 | 25-8 | 0.3-0.074 | 280 |
| MQY-2245 | 2200 | 4500 | 15.2 | 28 | 21.3 | 26.8-8.5 | 0.3-0.074 | 280 |
| MQY-2436 | 2400 | 3600 | 14 | 26 | 21.3 | 33.5-8.8 | 0.3-0.074 | 280 |
| MQY-2460 | 2400 | 6000 | 24 | 44 | 21.7 | 56-14.5 | 0.3-0.074 | 480 |
| MQY-2736 | 2700 | 3600 | 18 | 33 | 20.7 | 54-11.7 | 0.3-0.074 | 400 |
| MQY-2760 | 2700 | 6000 | 31 | 57 | 20.6 | 90-19.5 | 0.3-0.074 | 630 |
| MQY-3040 | 3000 | 4000 | 25.7 | 47 | 19 | 78-16.5 | 0.3-0.074 | 500 |
| MQY-3254 | 3200 | 5400 | 38 | 73 | 18.2 | 114-25.9 | 0.3-0.074 | 800 |
| MQY-3270 | 3200 | 7000 | 50.6 | 93 | 18.2 | 148-30.2 | 0.3-0.074 | 1250 |
| MQY-3645 | 3600 | 4500 | 40.8 | 75 | 18 | 136-24.3 | 0.3-0.074 | 1000 |
| MQY-3685 | 3600 | 8500 | 79 | 131 | 18 | 256-45.8 | 0.3-0.074 | 1800 |
| MQY-4060 | 4000 | 6000 | 70 | 126 | 16.9 | 226-40.5 | 0.3-0.074 | 1500 |
| MQY-4361 | 4270 | 6100 | 80 | 144 | 15.7 | 258-46 | 0.3-0.074 | 1850 |
| MQY-4564 | 4500 | 6400 | 95 | 172 | 15.6 | 306-54 | 0.3-0.074 | 2000 |
| MQY-5064 | 5000 | 6400 | 120 | 216 | 14.4 | 386-68 | 0.3-0.074 | 2600 |
| MQY-5585 | 5500 | 8500 | 187 | 338 | 13.8 | 615-108 | 0.3-0.074 | 4500 |
Manufacture process of Ball Mill:
