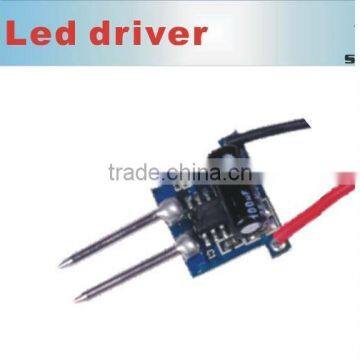

12v ac 12v dc led driver
- shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Soluxled | |
| Model Number | HG-1203-6807 | Output Power | Other, 1-3w | |
| Output Type | Single | Input Voltage | Other, AC/DC12V | |
| Output Voltage | 2-12V | Output Frequency | 50Hz | |
| Output Current | 300mA ±5% |
Product Description
Specifications
1.Input:ac 12v output dc 12v2. Accurate constant output current
3.For mr16 lamp holder
4. 2 yeas guarantee
1.
Output Watt | 1*1(w) |
Output current | 280mA±5% |
Output voltage | 2-4v |
Input voltage | AC/DC12-24(V) |
2.
Output Watt | 3*1(w) |
Output current | 280mA±5% |
Output voltage | 9-12v |
Input voltage | AC/DC12-24(V) |
3.
Output Watt | 1*3(w) |
Output current | 580mA±5% |
Output voltage | 2-4v |
Input voltage | AC/DC12-24(V) |
4.
Output Watt | 3*3(w) |
Output current | 580mA±5% |
Output voltage | 9-12v |
Input voltage | AC/DC12-24(V) |
Brand | SOLUXLED |
Prower Factor | PF>0.5 |
Size | MR16-T18*14mm |
Load regulation | 2(%) |
Current accuracy | 5(%) |
Type | Open frame driver |
Efficiency | 88% |
Modulation mode | PWM |
Voltage regulation | 2(%) |
Protection | Over current |
Short circuit | |
Over voltage | |
Over temperature |
² Constant current
² without flicker
² Large selection of the parameter, long working-time
² Using the high frequency low resistance electrolysis with 8000 hours , excellent quality and stable performance.
² passing 100% aging test, high reliability;
² With the production of Short circuit,broken circuit,Automatic overload protection,more safety more stable.
Output characteristics:
Ø type:Constant current,seclusion type
Ø watt:1-3W
Ø current:300mA±5%
Ø ripple:2Vp-p
Ø Output groups:1
Working temperature:-30°C ~ +65°C
Quality guarantee:
ü All the driver have automatic protection of overload, short circuit, temperature,etc.
ü Guarantee:1.The warranty period is 1-2 years. 2.During the time ,if the product have any question ,
we can change the same to you.
ü We can design the product according to your requirement. If you want to guarantee over 3 years, the price could
be negotiated separately.
Production process:
Certificate: CE and BV
About us:
Custumers feedback:
Application: Spotlight with mr16 base, indoor bulb.
Packing:
cartons
Notes:
Payment::L/C,T/T,Western union,Money grame,Ali-pay, etc.
