Home > Products > mining ball mill > Hot Selling Type 900*1800mm Energy Saving Small Dry or Wet Ball Mill
Hot Selling Type 900*1800mm Energy Saving Small Dry or Wet Ball Mill
- Tianjin Shanghai Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Long Working Life Wet Ball Mill Prices , Wet Ball Mill Prices for Mining Plant
-
Ore Extraction/Benificiation Machine---Ball Mill /ball Mill for Sale With Low Price
-
China Hot Sale Energy Saving Small Dry or Wet Quartz Silicia Sand Grinding Ball Mill Price
-
Low Price Energy Mineral Equipment Ball Mill for Sale
-
Full Service Hot Sale After-sales Service Provided Grinding Machinery Ball Mill Type
-
China Manufacturer Zhongde Brand Excellent Public Praises of Customers Ball Mill
Product Details
| Condition | New | Type | Ball Mill | |
| Motor Type | AC Motor | Power(W) | 1800kw | |
| Capacity(t/h) | 248-65t/h | Place of Origin | Henan, China | |
| Brand Name | zhongde | Model Number | MQS-4060 | |
| Dimension(L*W*H) | 4000*6000mm | Weight | 242t | |
| Certification | CE, ISO,BV | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Ball Mill
Application of ball mill:
Ball mill is the key equipment for grinding after the crush process, and it is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.
It also can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
Structure of Ball mill: The Ball mill machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control).
The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance.
Technical parameters of Grid ball mill:
Model | Cylinder(m) | Effective Volume(m³) | Max. Ball loading(t) | Speed (r/min) | Capacity(t/h) | Main motor(kw) | |
Diameter | Length | ||||||
MQS-1530 | 1.5 | 3 | 4.5 | 8 | 30 | 7-3.1 | 90 |
MQS-1545 | 1.5 | 4.5 | 6.7 | 11 | 29.6 | 10-4.2 | 110 |
MQS-1830 | 1.83 | 3 | 6.7 | 11.5 | 26.6 | 14-4.95 | 130 |
MQS-1845 | 1.83 | 4.5 | 10.5 | 15 | 26.8 | 17-6.6 | 155 |
MQS- 2130 | 2.1 | 3 | 8.8 | 15 | 23.8 | 20-6.4 | 155 |
MQS- 2145 | 2.1 | 4.5 | 13.8 | 24 | 23.8 | 27.5-8.8 | 245 |
MQS- 2230 | 2.2 | 3 | 10 | 20 | 21.3 | 25.5-7.6 | 210 |
MQS- 2245 | 2.2 | 4.5 | 15.2 | 27 | 21.4 | 29.5-9.4 | 280 |
MQS-2430 | 2.4 | 3 | 12 | 23 | 21.3 | 28.6-7.7 | 245 |
MQS- 2445 | 2.4 | 4.5 | 17.8 | 30 | 21.4 | 46.5-12 | 320 |
MQS- 2470 | 2.4 | 7 | 28 | 45 | 21.5 | 72-18.6 | 480 |
MQS- 2736 | 2.7 | 3.6 | 8 | 39 | 20.7 | 60-12.8 | 400 |
MQS- 2740 | 2.7 | 4 | 20.6 | 43 | 20.7 | 66-14.5 | 450 |
MQS- 2745 | 2.7 | 4.5 | 23.2 | 45 | 20.7 | 75-16 | 480 |
MQS-2750 | 2.7 | 5 | 25.8 | 54 | 20.6 | 83-17.6 | 570 |
MQS-2760 | 2.7 | 6 | 31 | 55 | 20.6 | 99-21.5 | 570 |
MQS- 3040 | 3.0 | 4 | 25.7 | 54 | 19 | 86-18 | 560-630 |
MQS-3064 | 3.0 | 6.4 | 40.2 | 84 | 19 | 138-28.5 | 1000 |
MQS- 3230 | 3.2 | 3 | 21.8 | 46 | 18.2 | 78-15.5 | 500 |
MQS-3236 | 3.2 | 3.6 | 26.2 | 56 | 18.2 | 94-18.6 | 630 |
MQS- 3245 | 3.2 | 4.5 | 32 | 65 | 18.2 | 105-23.8 | 800 |
MQS- 3640 | 3.6 | 4 | 36 | 75 | 18 | 135-25 | 1000 |
MQS-3645 | 3.6 | 4.5 | 40.8 | 88 | 18 | 150-29 | 1250 |
MQS-3650 | 3.6 | 5 | 46 | 96 | 18 | 166-35 | 1400 |
MQS- 3660 | 3.6 | 6 | 54 | 117 | 18 | 199-38 | 1400-1600 |
MQS- 4050 | 4.0 | 5 | 58 | 121 | 16.9 | 208-45 | 1500 |
MQS-4060 | 4.0 | 6 | 70 | 146 | 16.9 | 248-65 | 1800 |
MQS-4560 | 4.5 | 6 | 87 | 182 | 15.6 | 308-80 | 2300 |

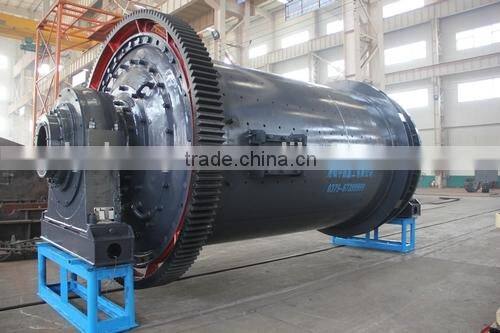

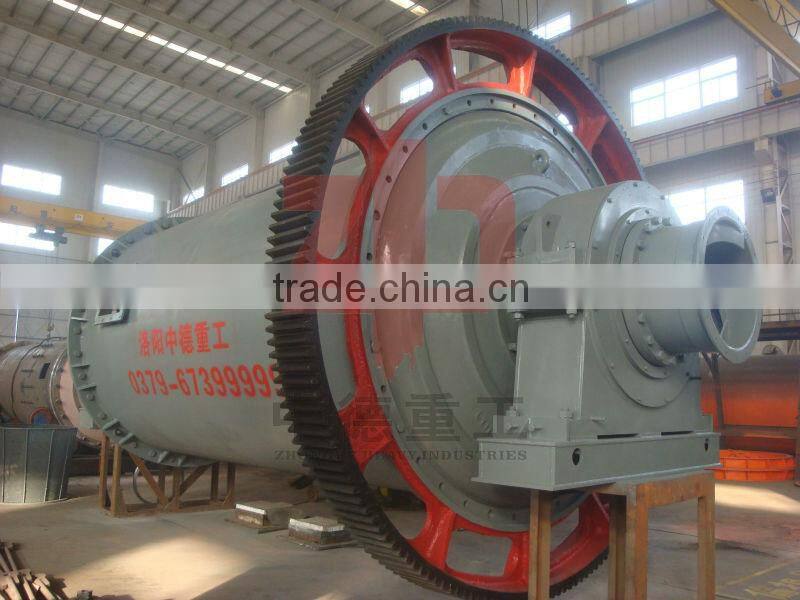

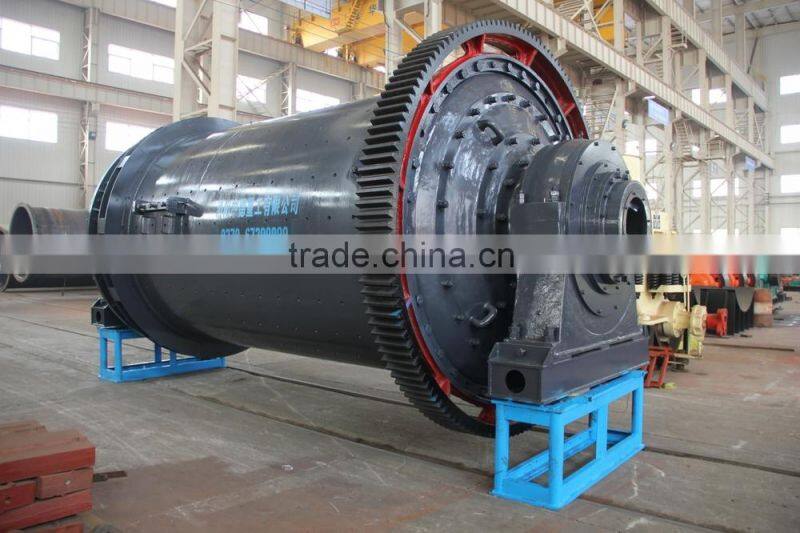

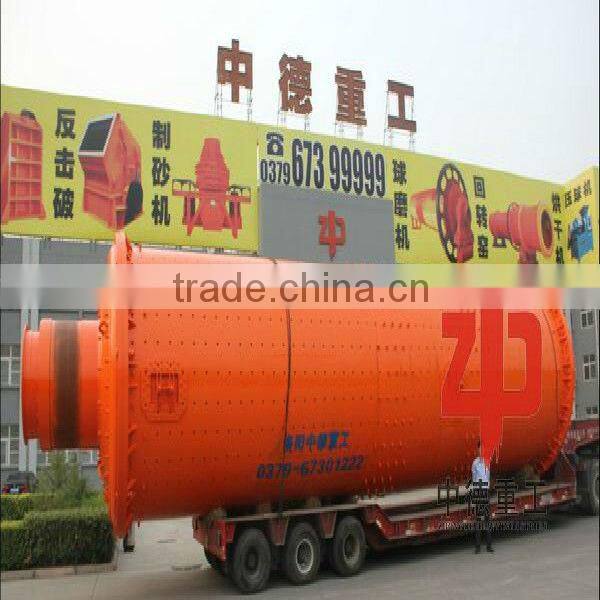

pictures for reference:
manufacturing process of ball mill:

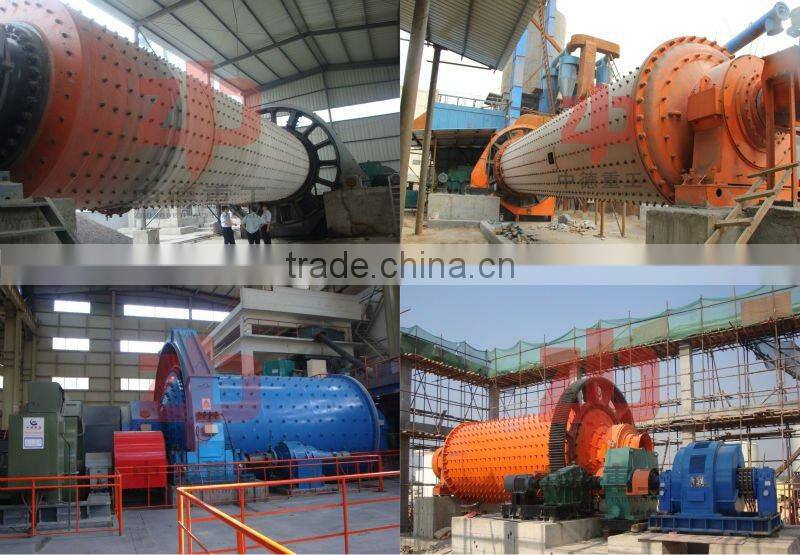

Pictures on site of our customers:
Introduction of our company:
Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959.
Over the past fifty years, it has made significant contribution to the economic development in China.
In 1995, it took the lead in changing into the joint stock company, which brought rapid development to the company.
In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park.
Facilities and manufacturing capacity:
Exchanges communications:
Certificate:
How about the quality of your Grid ball mill?
- Our Grid ball mill is manufactured strictly according national and international standard.
- We take a test on every Grid ball mill before delivery.
How about price of your Grid ball mill?
- We can give the lowest price of Grid ball mill than market one.
- We do quotation of Grid ball mill as soon as possible for any customer.
- Discount of Grid ball mill can be given according to quantity.
How about the after-sale service of your company?
- Our engineer is available to installation Grid ball mill overseas.
- The guarantee period of our Grid ball mill is one year.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with you. We will provide you the most suitable products with the most reasonable price.
More details, please visit our website:
Contact Us
- Luoyang Zhongde Heavy Industries Co., Ltd.
- Contact nameEMMA GAO Chat Now
- Phone86-379-6731 2018
- AddressLuoxin Avenue, Luoxin Industrial Park, Xin'an County, Luoyang, Henan Province, Luoyang, Henan
