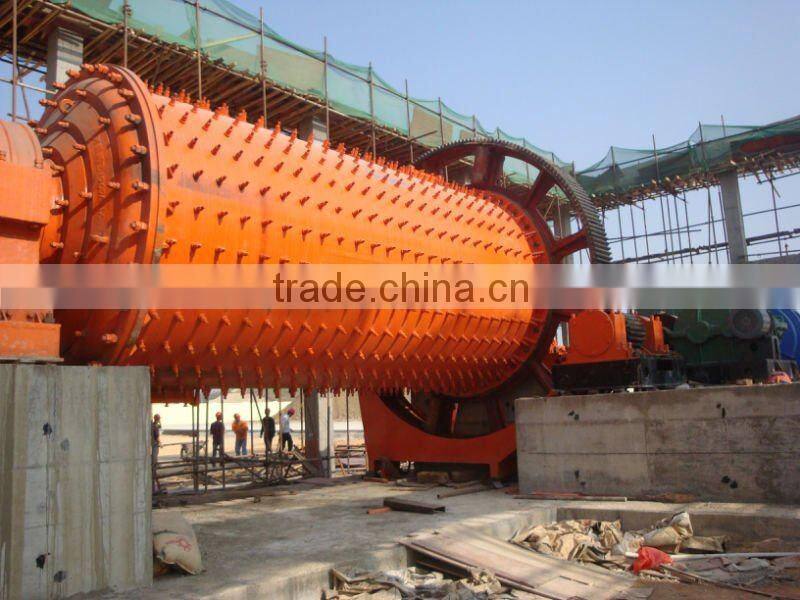

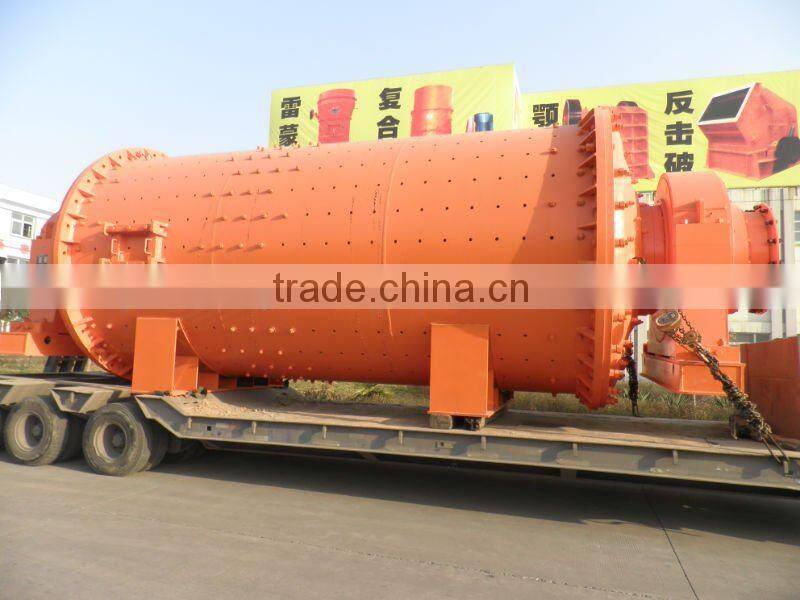

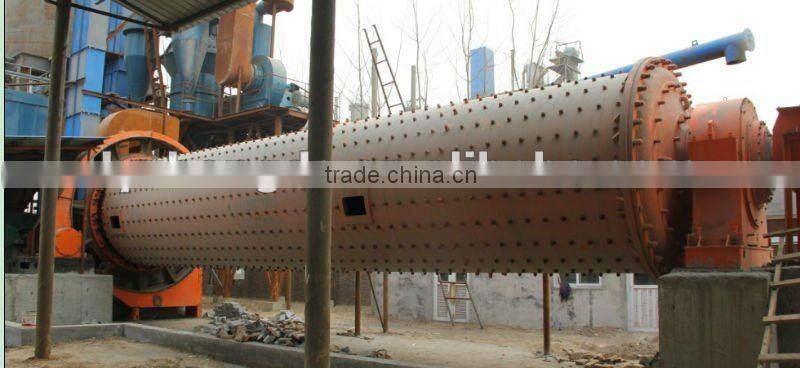

High Productivity Grind Mill Manufactured by Luoyang Zhongde for Sale

FOB Price

US$ 20,000 - 120,000 / Set

1 Set(Min. Order)

Port Tianjin Qingdao Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Ball Mill
Motor Type	AC Motor	Power(W)	-
Capacity(t/h)	2.8-800	Place of Origin	Henan, China
Brand Name	Zhongde	Model Number	Variety
Dimension(LWH)	-	Weight	-
Certification	ISO CE BV certificate	Warranty	One Year, 1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Application:

Ball mill is the key equipment for grinding after the crush process, and it is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.

It also can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

Structure of Ball mill:
The machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control).

The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-

resistance.

Technical parameters:

Model	Diameter of cylinder(mm)	Length of cylinder(mm)	Effective volume(m³)	Max.ball loading(t)	Speed(r/min)	Capacity(t/h)	Discharging size(mm)	Main motor(kw)
MQY-1530	1500	3000	4.5	8	30	6.3-2.8	0.3-0.074	90
MQY-1845	1830	4500	10.5	19	26.8	15.5-6	0.3-0.074	180
MQY-2130	2100	3000	9.2	16	23.8	18-5.8	0.3-0.074	210
MQY-2145	2100	4500	13.8	25	23.8	25-8	0.3-0.074	280
MQY-2245	2200	4500	15.2	28	21.3	26.8-8.5	0.3-0.074	280
MQY-2436	2400	3600	14	26	21.3	33.5-8.8	0.3-0.074	280
MQY-2460	2400	6000	24	44	21.7	56-14.5	0.3-0.074	480
MQY-2736	2700	3600	18	33	20.7	54-11.7	0.3-0.074	400
MQY-2760	2700	6000	31	57	20.6	90-19.5	0.3-0.074	630
MQY-3040	3000	4000	25.7	47	19	78-16.5	0.3-0.074	500
MQY-3254	3200	5400	38	73	18.2	114-25.9	0.3-0.074	800
MQY-3270	3200	7000	50.6	93	18.2	148-30.2	0.3-0.074	1250
MQY-3645	3600	4500	40.8	75	18	136-24.3	0.3-0.074	1000
MQY-3685	3600	8500	79	131	18	256-45.8	0.3-0.074	1800
MQY-4060	4000	6000	70	126	16.9	226-40.5	0.3-0.074	1500
MQY-4361	4270	6100	80	144	15.7	258-46	0.3-0.074	1850
MQY-4564	4500	6400	95	172	15.6	306-54	0.3-0.074	2000
MQY-5064	5000	6400	120	216	14.4	386-68	0.3-0.074	2600
MQY-5585	5500	8500	187	338	13.8	615-108	0.3-0.074	4500

Manufacture process of Ball Mill:

For more products, please view pur websit:
