China professinal manufacturer provide Flotation machine, mineral separator
- Tianjin Shanghai Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
flotation machine for sale, with high performance, hot in Argentina
-
ore mining Flotation machine from henan manufacturer
-
China leading manufactuer provide flotation machine with high efficiency
-
China leading manufactuer provide Copper ore mining XJK type Flotation machine with high efficiency and hot sale in Pakistan
-
mining equipment flotation machine for various ore with high efficiency
-
2016 hot sell flotation machine for copper ore /gold ore beneficiation
Product Details
| Condition | New | Type | Other, Flotation mchine | |
| Application | metal, nometal, rare metal etc. | Motor Type | AC Motor | |
| Power(W) | non-ferrous metal, ferrous metal and nonmetal | Capacity(t/h) | 10-20 | |
| Place of Origin | Henan, China | Brand Name | ZHONGDE | |
| Model Number | BF-20 | Dimension(L*W*H) | 2850*3800*2000 | |
| Certification | ISO9001:2008 & CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Flotation machine
Characteristics of SF flotation Machine:
1. The impeller consists of closed double section cones, which can produce strong down-circulation;
2. Big air inlet amount, low energy consumption;
3. Each trough has the function of air suction, ore pulp suction and flotation, it can make a flotation circuit itself, with no auxiliary equipments. The horizontal configuration makes it easy to change process;
4. Rational ore pulp circulation reduces coarse sand sediment;
5. There are automatic and electric control devices of ore pulp level, which makes easy adjustment.
Technical parameters:
| Model | Effective volume (m3) | Inside dimensions(L×W×H)(m) | Air suction amount (m3/m² min) | Power(KW) | Processing capacity(m3/min) |
| BF-0.37 | 0.37 | 0.7×0.7×0.75 | 0.9-1.05 | 1.5 | 470 |
| BF-1.2 | 1.2 | 1.1×1.1×1.1 | 1.0-1.10 | 1.1 | 1370 |
| BF-2.8 | 2.8 | 1.65×1.65×1.15 | 0.9-1.10 | 11 | 2130 |
| BF-4.0 | 4.0 | 1.9×2.0×1.2 | 0.9-1.10 | 15 | 2585 |
| BF-6.0 | 6.0 | 2.2×2.35×1.3 | 0.9-1.10 | 18.5 | 3300 |
| BF-8.0 | 8.0 | 2.25×2.85×1.4 | 0.9-1.10 | 22 30 | 4130 |
| BF-10 | 10 | 2.25×2.85×1.7 | 0.9-1.10 | 22 30 | 4660 |
| BF-16 | 16 | 2.85×3.8×1.7 | 0.9-1.10 | 37 45 | 8320 |
| BF-20 | 20 | 2.85×3.8×2.0 | 0.9-1.10 | 37 45 | 8670 |
| BF-24 | 24 | 3.15×4.15×2.0 | 0.9-1.10 | 45 | 8970 |

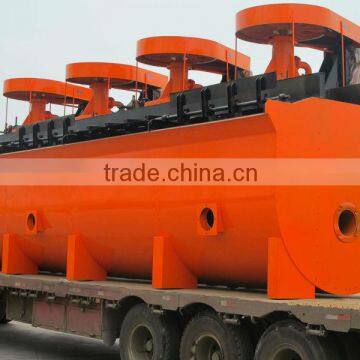

Pictures of flotation machine:
