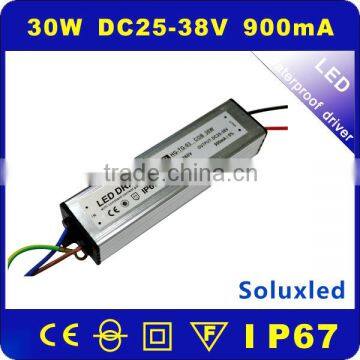

LED DRIVER waterproof 30W IP67
- 100000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | Soluxled | |
Model Number | HG-WP2224 | Input Voltage | AC90-260V | |
Output Voltage | DC25-38V | Output Power | 30W | |
Output Frequency | 50/60Hz | Output Current | 900mA |
Product Description
Specifications
1.Small size, easy install;2.OEM is welcome!!!
Product code: HG-WP2224
Waterproof IP67 for Flood lamp and high bay lamp etc <10W-120W> | ||||||||||
MODEL | HG-WP2207B | HG-WP2213B | HG-WP2224 | HG-WP2240 | HG-WP-PF2230A | HG-WP-PF2250A | HG-WP-PF2270 | HG-WP-PF22100 | HG-WP-PF22120 | |
OUTPUT | RATED POWER | 10W | 20W | 30W | 50W | 30W | 50W | 70W | 100W | 120W |
RATED CURRENT | 300mA | 600mA | 900mA | 1500mA | 900mA | 1500mA | 2100mA | 3000mA | 3600mA | |
VOLTAGE RANGE | DC25-38V | DC25-38V | DC25-38V | DC25-38V | DC25-38V | DC25-38V | DC25-38V | DC25-38V | DC25-38V | |
CURRENT TOLERANCE | 5% | |||||||||
INPUT | VOLTAGE RANGE | AC90-260V | ||||||||
FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
POWER FACTOR | >0.5 | >0.5 | >0.5 | >0.5 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | |
EFFICIENCY | 85% | 87% | 87.90% | 87% | 88.70% | 89.50% | 88% | 88% | 88% | |
ENVIRONMENT | WORKING TEMP | -20 ~ 40°C | -20 ~ 40°C | -20 ~ 40°C | -20 ~ 40°C | -30 ~ 55°C | -30 ~ 55°C | -30 ~ 55°C | -30 ~ 55°C | -30 ~ 55°C |
QTHERS | DIMENSION (mm) | 71*25*21 | 81*25*21 | 136*30*21 | 108*37*28 | 135*30*25 | 161*32*28 | 154*63*40 | 159*70*45 | 159*70*45 |
Product characteristics:
²Constant current;²without flicker;²Low heat,high efficiency;²Large selection of the parameter, long working-time;²Using the high frequency low resistance electrolysis with 8000 hours , excellent quality and stableperformance.
²passing 100% aging test, high reliability; ²With the production of Short circuit,broken circuit,Automatic overload protection,more safety more stable.
Output characteristics:
Ø watt: 30WØ voltage: 25-38VØ current:900mAØ ripple:2Vp-pØ Output groups:1
Working temperature:-20°C ~ +40°C
Quality guarantee:
ü All the driver have automatic protection of overload, short circuit, temperature,etc.ü Guarantee:1.The warranty period is 1-2 years.2.During the time ,if the product have any question ,
we can change the same to you.
Production process:
Certificate: CE and BV
About us:
Custumers feedback:
Application:
1 OEM is welcome ! 2 can be customized !
Cartons
FAQ
1 how to order ?
A: send me email or call me with trademanager or skype , tell me the quantity you need and the method you prefer to send , and i will send you proformer invoice for confirmation , after we recieve the payment , your order will be processing and send to you as agreement with each other .( skype : Tyrone-Soluxled ) .
2 how to pay ?
A : we accept LC ,TT, Paypal , western union ,Ali-pay etc .
