Home > Products > Internal led driver(Open Frame) > T5 T8 Led Driver Isolated

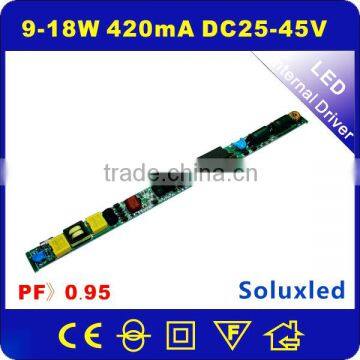

T5 T8 Led Driver Isolated
- Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Soluxled | |
| Model Number | HG-PF2225ISO | Output Power | 1 - 50W | |
| Output Type | Single | Input Voltage | Other, AC90-260V | |
| Output Voltage | DC20-45V | Output Frequency | 50/60Hz | |
| Output Current | 300mA |
Product Description
Specifications
1 small size2 easy install
3 pf>0.95, high efficiency
4 Factory direct
5 isolated
Production Description :
Order Model : HG-PF2225ISO
| LED Driver power supply ,for tube lamp | ||||
| MODEL | HG-PF2226 | HG-PF2225 | HG-PF2225ISO | |
| OUTPUT | RATED POWER | 9-18W | 9-18W | 9-16W |
| RATED CURRENT | 220mA | 220mA | 300mA | |
| VOLTAGE RANGE | 42-81V | 20-63V | 20-45V | |
| CURRENT TOLERANCE | 5% | |||
| INPUT | VOLTAGE RANGE | AC90-260V | AC90-260V | AC90-260V |
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR | >0.95 | >0.95 | >0.95 | |
| EFFICIENCY | / | / | / | |
| ENVIRONMENT | WORKING TEMP | -30 ~ 55°C | -30 ~ 55°C | -30 ~ 55°C |
| QTHERS | DIMENSION(mm) | 90*16*10 | 200*15*10 | 246*17*10 |
Product features:
² Full range input: AC90-260V
² Constant current, isolated
² 100% burn-in tests (at full load), no flicker, stable and high reliability.
² Protection: Over voltage, Over load, Over temperature, Short circuit
² Rated current output can be customized
Details Picture:
Production process:
Application: led tube light, panal light
Certificate: CE and BV
About us:
Custumers feedback:
Quality guarantee:
ü 1.The warranty period is 1-2 years. 2. During the time ,if the product have any question, we can change the same to you.
ü We can design the product according to your requirement. If you want to guarantee over 3 years, the price could be negotiated separately.
cartons
FAQ
1 how to order ?
A: send me email or call me with trademanager or skype , tell me the quantity you need and the method you prefer to send , and i will send you proformer invoice for confirmation , after we recieve the payment , your order will be processing and send to you as agreement with each other .( skype : Tyrone-Soluxled ) .
2 how to pay ?
A : we accept LC ,TT, Paypal , western union ,Ali-pay etc .
