Home > Products > External led driver(PC Box) > HG-PC-PF2250 LED driver lamps driver 50W COB

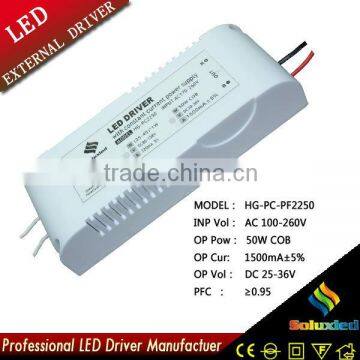

HG-PC-PF2250 LED driver lamps driver 50W COB
- 100000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | SOLUXLED | |
Model Number | HG-PC-PF2250 | Output Power | 1 - 50W | |
Output Type | Single | Input Voltage | Other, AC 100-260V | |
Output Voltage | 25-36V | Output Frequency | 50Hz | |
Output Current | 1500mA±5% |
Product Description
Specifications
1.INPUT: AC 100-260V2.OUTPUT: 25-36V 1500mA 50W COB 5*10*1W
3.SIZE: 149*55*33MM
Brand: SOLUXLED Model: HG-PC-PF2250
Product Main Information:
Type: | Constant Current |
Input Voltage: | AC 100-260V |
Size: | 149*55*33MM |
Output Current: | 1500mA±5% |
Output Voltage: | DC 25-36V |
Power: | 50W COB 5*10*1W |
PFC/PF: | ≥0.95 |
Warranty: | 2 Years |
Weight: | |
Waterproof level: |
Temperature: | -25°C~+65°C |
Output Ripple: | 2Vp-p |
Efficiency: | 85% |
Frequency: | 47-63Hz |
Modulation: | PMW |
MOQ: | 1PCS |
Isolation: | Yes |
Application:
Spotlight, Downlight, Ceiling light, Panel lights, Wall wash light, Ball steep light...etc.
Certificate: CE and BV
Product Features:
² Constant current
² Without flicker
² Low heat, High efficiency
² Large selection of the parameter, long working-time
² Using the high frequency low resistance electrolysis.
² Passing 100% aging test, high reliability
Protection:
² Short circuit / over current / over voltage/ Over load/ Over temperature
Product Picture:
Tips:
1. The product must be connected the LED lamps, and, can't no-load power for a long time then turning on the product
2. Do not short circuit.
3.Please refer to the instruction manual before use.
4. If not sure how to use the product,please contact us before use.
Quality guarantee:
ü 1.The warranty period is 2 years.
ü 2. If the product have any question during the time, we can fix it or change the same to you.
ü 3.We can design the product according to your requirement. If you want to guarantee over 3 years, the price could be negotiated separately.
Storage:
1.Keep Dry, don’t shock
2.Storage in below 35°C,humidity less than 75% environment
Notes:
1. Payment: L/C, T/T, Western Union, Money Gram, Ali-pay, etc.
2. Packing: Cartons
3. Shipping
4. If you have any question, or not find the product which you want, Please contact us.
Production process:
About us
Feedback
FAQ
Q: The picture is really beautiful, if I buy the items from you, are there same with the picture on your website?
A: Yes, dear. Please don't worry about it. All the pictures are 100% originally taken by our photos. We guarantee the items you received will be the same as the described.
Q: How do I pay for my purchase?
A: We accept the following payment methods: T/T, Western Union, L/C, PayPal.
Q: Is there any tracking Number for my item?
A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website. The international shipping cost long time, please know about this.
Q: What if I feel confusions with the products?
A: We guarantee to provide the best after-sell service to if you have any question of our products please don't hesitate to tell us.
