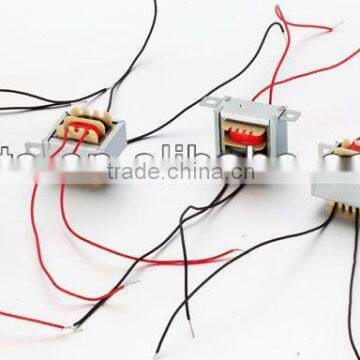

E128 high frequency transformer

Specifications

A. Feature:

1. Custom designs available

2. High efficiency of over 95%

3. High frequency range 10 kHz-1MHz

4. High isolation strength

5. Lower profile and weight

6. High power density

7. High-temperature resistant

8. Operating temperature -40°C to +125°C

9. Power range 10w-10kw

B. Wire Materials:

1. Copper, Aluminum, Aluminum Clad Copper.

2. The size of transformer total in Aluminum is larger than which total in Copper.

3. Aluminum instead of Copper Cost Save: 13%-35%/PC

C. Certification:

ISO9001, CESI, UL, CE, RoHS and SGS.

D. Testing Items:

1. No-load Test (No-load Current, No-load Voltage, No-load Loss)

2. Load Test (Load Voltage, Temperature-rise)

3. Inductive Voltage Test

4. DC Resistance Test 5. Safety Test

E. Application:

1. Electronic Meter & Apparatus

2. Cable TV & Digital Network

3. Electronic Control

4. Medical Equipment

5. New Electric Power Supply

6. Decorative Illumination System

7. Security Monitor & Control System

8. Comparison on Transformer with Torpidly, EI, R, CD Shape Core

- Specially used in switching power supply and all kinds of high-frequency circuit

- Small volume and light weight

- Size: EE8~42, EER9-49, EI12~40

F. Features:

1. Custom designs available

2. High efficiency of over 95%

3. High frequency range 10kHz-1MHz

4. High isolation strength

5. Lower profile and weight

6. high power density

7. High-temperature resistant

8. Operating temperature -40°C to +125°C

9. Power range 10w-10kw

We can provide several of transformers.

Send your detailed specification we'll quote to you soon.
