0-10v dimmable led driver 20w for led ceiling light

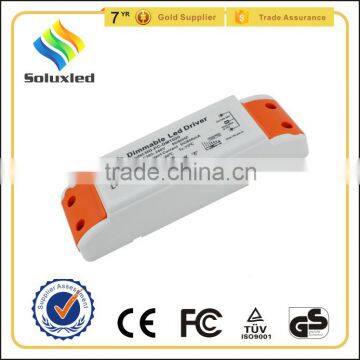

Detailed picture:

Production process:

Output feature:
1. Output Type:constant current,isolated LED dimmable led driver

2. Output power: 10W

3. Output voltage: DC20-35V

4. Output current: 300mA

5. Output group: 1-2

6. Output ripple: 2Vp-p

Input feature:

1. Input voltage:AC100-250V

2. Input frequency:47-63Hz

3. Transfer efficiency:85%

4. Power factor:0.65

5. Working temperature:-25℃~+65℃

Protection:

1.Short circuit protection:

If any wrong connection with anode and cathode at the output side, the driver will start up short circuit protection to avoid dange and damage to people and the product.

2.Open circuit protection:

When the output side is in the state of no-load and open-circuit, the input side can be input normally and will not be damaged.

Application:

All indoor dimmable led light, such as led downlight, led spot lights, led panel lights, led bulb light, etc.

Notic for use:

1.The driver must be well-joined to the lamp before connecting to the main power, long time no-load with power on is forbidden.

2.If need to weld power wire, do avoid touching the tin of other welding spot, cold joint, false solder and short circuit.

3.All the wire should be avoided touching the surface of the capacitance directly.

4.When assembling the lamp, please do not press the led driver for fear of deforming or damaging the components.

5.Working environment and temperature must be in compliance with the regulation of the specification.

6.Naked wire or metal housing should be avoided touching the driver directly.

7.Aging test shoud be conducted according to actual situation for more than 24 hours after the driver assembled to the lamp to make sure the quality of the driver.

8.Try to avoid direct touching between the housing of electrolytic capacitor and the housing of the lamp.

9.All the wire must be heat-resisting wire and should be avoided squeezing.

Storage and transport

1.Protect the driver from moisture and shaking when packing.

2.Stored in indoor warehouse with temperature <35℃ and humidity ≤75%.

3.Protect the driver from rain, water logging and strong shaking when transporting.

Warranty:

We provide 2 years warranty, if there is any problem during the warranty, we will repair or change the same model for free..

Usage:

There are four wires, the two white wire is the input wire connected to AC power, the red and black wire at the other side is output wire, the red one connects anode and the black one connects cathode
