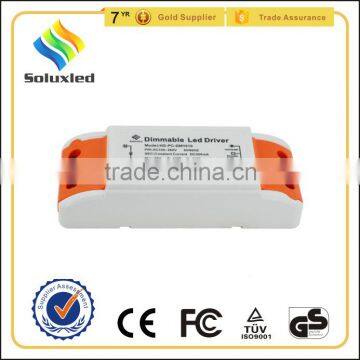

10w led driver constant current 0-10v dimmable
- shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Soluxled | |
| Model Number | HG-PC-DM1010 | Output Power | Other, 10W | |
| Output Type | Single | Input Voltage | Other, AC220V | |
| Output Voltage | 20-35V | Output Frequency | 55Hz | |
| Output Current | 300mA |
Product Description
Product features:
² Input voltage: AC100-260V
² Dimmable led driver
² 100% burn-in tests (at full load), no flicker, stable and high reliability
² Protection: Over voltage, Over load, Over temperature, Short circuit
² IP20 for indoor installtions
² Rated output can be customized
Product specification:
Item No. | HG-PC-DM1010 |
Type | Dimmable led driver |
| Input Voltage | AC100-260V |
| Output Voltage | DC20-35V |
| Output Current | 300mA ±5% |
| Output Power | 10w |
| Power Factor | 0.65 |
| Efficiency | 88% |
| Working Temperaturer | -20°C~+50°C |
| Protection | Short circuit / over current / over voltage |
| Size | 115*45*27 mm |
Weight | 40g |
MOQ | 1pcs |
Warranty | 2 years |
Detailed picture:
Production process:
Application:
Certificate: CE and BV
Packing:
cartons
Notes:
Payment::L/C,T/T,Western union,Money grame,Ali-pay, etc.
Quality guarantee:
ü 1.The warranty period is 1-2 years.
2. During the time ,if the product have any question, we can change the same to you.
ü We can design the product according to your requirement. If you want to guarantee over 3 years, the price could be negotiated separately.
