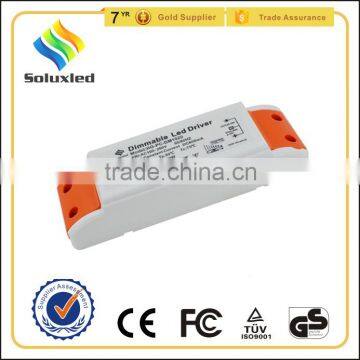

China manufacturer factory price 0-10v 20w dimmable led driver

Detailed picture:

Production process:

Output feature:
1. Output Type:constant current,isolated LED dimmable led driver

2. Output power: 10W

3. Output voltage: DC20-35V

4. Output current: 300mA

5. Output group: 1-2

6. Output ripple: 2Vp-p

Input feature:

1. Input voltage:AC100-250V

2. Input frequency:47-63Hz

3. Transfer efficiency:85%

4. Power factor:0.65

5. Working temperature:-25℃~+65℃

Protection:

1.Short circuit protection:

If any wrong connection with anode and cathode at the output side, the driver will start up short circuit protection to avoid dange and damage to people and the product.

2.Open circuit protection:

When the output side is in the state of no-load and open-circuit, the input side can be input normally and will not be damaged.

Application:

All indoor dimmable led light, such as led downlight, led spot lights, led panel lights, led bulb light, etc.

Notic for use:

1.The driver must be well-joined to the lamp before connecting to the main power, long time no-load with power on is forbidden.

2.If need to weld power wire, do avoid touching the tin of other welding spot, cold joint, false solder and short circuit.

3.All the wire should be avoided touching the surface of the capacitance directly.

4.When assembling the lamp, please do not press the led driver for fear of deforming or damaging the components.

5.Working environment and temperature must be in compliance with the regulation of the specification.

6.Naked wire or metal housing should be avoided touching the driver directly.

7.Aging test shoud be conducted according to actual situation for more than 24 hours after the driver assembled to the lamp to make sure the quality of the driver.

8.Try to avoid direct touching between the housing of electrolytic capacitor and the housing of the lamp.

9.All the wire must be heat-resisting wire and should be avoided squeezing.

Storage and transport

1.Protect the driver from moisture and shaking when packing.

2.Stored in indoor warehouse with temperature <35℃ and humidity ≤75%.

3.Protect the driver from rain, water logging and strong shaking when transporting.

Warranty:

We provide 2 years warranty, if there is any problem during the warranty, we will repair or change the same model for free..

Usage:

There are four wires, the two white wire is the input wire connected to AC power, the red and black wire at the other side is output wire, the red one connects anode and the black one connects cathode

Company profile:

Located in Jiangmen city, Soluxled is a high-tech enterprise specialized in research, design and development of high power led driver. With support of our R&D team which found in 2007, we have developped advanced IC-control circuit which is in compliance with international and domestic technique requirement. Our products include AC/DC series intelligent high frequency switching power supply and 1w to 120w high power led driver features small size, multi-proteciton, high PF, high efficiency, stability, high reliability and strong anti-interference, which applied to characteristic of led. We could also design the power supply according to our client's requirement and provide them the best driving solution.

We have our own brand "Soluxled" which is popular all over the world. With high quality products, reasonable price and good service, we have won recognition from domestic and overseas customer.
