soluxled LED Dimmable driver lamps driver 5-8*1W constant current power supply high efficiency
- 100000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | soluxled | |
Model Number | HG-PC-DM2207 | Input Voltage | AC220V | |
Output Voltage | 15-27V | Output Power | 5-8*1W | |
Output Frequency | 50Hz | Output Current | 310mA±5% |
Product Description
Specifications
1.INPUT: AC 220V2.OUTPUT: 15-27V 310mA 5-8*1W
3.SIZE: 94*45*27MM
4.Warranty:2 Years
5.Factory direct
soluxled HG-PC-DM2207 LED Dimmable driver lamps driver 5-8*1W constant current power supply high efficiency and PF PC box
Any other requirements,please do let me know, because there are other kinds of LED Driver in our company. In addition, we can design the product according to your requirement.
Product Information
Type | Constant Current |
Input Voltage | AC220V |
Output Voltage | DC 15-27V |
Output Watt | 5-8*1W |
Output Current | 310mA±5% |
Output Ripple | 2Vp-p |
Frequency | 47-63Hz |
Efficiency | 85% |
PF | ≥0.95 |
Size | 94*45*27MM |
Modulation | PMW |
Insulation | Yes |
Temperature | -25°C~+65°C |
MOQ | 1 pcs |
Warranty | 2 Years |

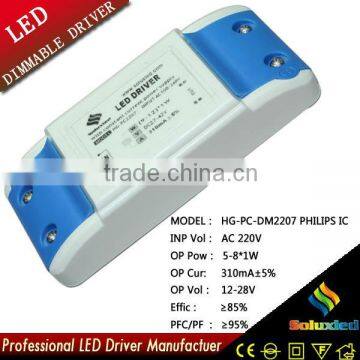

Product Picture
Certificate
Quality Guarantee
1. The warranty period is 2 years.
2. If the products have any question during the time, we can fix it or change the same to you.
3. We can design the product according to your requirement. If you want to guarantee over 3 years, the price could be negotiated separately.
Storage
1. Keep Dry, don’t shock
2. Storage in below 35°C, humidity less than 75% environment
Tips
1. The product must be connected the LED lamps, and, can't no-load power for a long time then turning on the product
2. Do not short circuit.
3. Please refer to the instruction manual before use.
4. If not sure how to use the product, please contact us before use.
Protection
² Short circuit / over current / over voltage/ Over load/ Over temperature
Payment
Packing
Shipping
Production Process
About Us
Feedback
SOLUXLED Lighting Electron Factory is a high-tech enterprise of jiangmen city guangdong china. Our company and our products have confirmed by Bureau Veritas ( BV Certification ) .
We manufacture sell communication LED driver with constant current power supply, DC power supply, UPS power supply, Waterproof led driver, internal led driver, external led driver, RGB led driver, RGB controller, DMX512...etc LED related products. With full integration of design, research, development, production and sales.
Waiting for your kind inquiry!
Contact Us
- Jianghai Soluxled Lighting Electron Factory
- Contact nameMary Liu Chat Now
- Phone86-750-3967287
- AddressJinxi industrial park,jiang hai qu , Jiangmen, Guangdong
