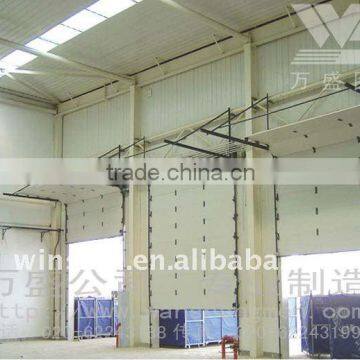

Made in China warehouse sectional door

Specifications

The specification of made in China warehouse sectional door

1.Shutter

The shutter uses the complete set Italy heat preservation board production line production. Shutter total thickness is 40mm, the two-sided 0.5mm thick .Steel Corporation color spreads the steel plate, coating processing top-down for gathers the fat coating, the primer, the deactivated level, the galvanization level, the orange grain embosses, the reverse side linearity presses the muscle to strengthen the shutter intensity. Between two steel plates fills the flinty polyurethane foaming material, the density 42kg/cube, the thermal conductivity is smaller than approximately 0.033W/m. k. In installing the hinge position to be equipped with the continual steel belt, guarantees the hinge reliable installment. In the 4m above shutter, in each shutter the side establishes a high 82mm stiffener to guarantee the shutter to be able the anti-12 levels of above typhoons.

2 .Hardware fitting

Shutter connection hinge for pot galvanize cold rolling steel plate ramming manufacture. Material thickness δ=2.0mm, galvanization thickness is bigger than 280 µ m. The guide rail rolls the manufacture for δ=2mm the pot galvanize steel plate 2 inch industry gate special-purpose guide rail; The guide rail section shape has guards against gets unhooked, guarantees the guide pulley in the guide rail the steady movement; The guide rail guard shield rolls the manufacture for δ=2mm the pot galvanize steel plate, on the guard shield is equipped with the gate side seal rubber the slot and the installment hole which connects with the guide rail; The guide pulley uses φ72mm the industry promotion gate special-purpose guide pulley, the guide pulley content hoop bearing, the movement steady, does not have the noise. Other hardware fitting uses the pot galvanize steel plate ramming manufacture, the size is accurate, the interchangeability is good.

3.main function characteristic:

1)Electrically controlled box: The electrically controlled box for operates, turns off, stops
three buttons to carry on the control separately; Has the security aerocyst infrared and so on many kinds of connections

2) The remote control (chooses fitting): Uses rolls the code remote control, the not heavy code, has the good security performance.

3) Stops the button anxiously: In the control box the establishment has stops the button anxiously, meets the emergency case to be possible to shut off the control loop power source fast, the guardian, machine is safe.

4) Automatic brake system: In the electrical machinery the establishment has the automatic brake system, can realize the fast brake, the accurate localization.

5) Releases the handle fast: Has releases the handle fast, but realizes the gate body and the machine fast separates, facilitates the installment, the maintenance.

6) Manual chain link: In situations and so on power cut, but hand switch gate.

7) Mechanical spacing cam: Uses the double cam spacing, and when opens the door the arriving may the output signal, safer more reliable.

4.main technical parameter:

1) Voltage:380V/50Hz : 1400rpm

2) Electrical machinery rotational speed
3) Output torque: 50N.m

4) Output rotational speed: 32rpm

5) Spacing traveling schedule: 28

6) Output axle hole: 25.4mm

7) Use ambient temperature: -10~50°C

8) Continuous running time: 10min

9) External dimensions: 370X23X100(mm)

10) Main engine quality: 28kg

5. Transparent Window:

The transparent windows (640mm*360mm)5mm the thick PC board

6. Operation speed: 10~15cm/s
