Industrial wind resistant automatic fold up garage door

High speed automatic fold up door garage door

Garage door description:

Winsion Djm -3000 super rapid fold up doors, folding doors, suitable for large workshop and large internal environment barrier closed, door curtains are made of lightweight nylon fabric and steel wind-resistant rods, strong wind resistance, can block large area, vermins-proof and dust-proof, heat preservation

Garage door Feature:

1. Size: max(W) X max(H)=15m x 35m

2. High Speed: open at 0.3-0.8m/s, close at 0.3-0.5m/s;

3. High frequency: 1000~1500times/s;

4. Strong material: high density polyester curtain(0.8~1.5mm thick), can bear tension at 5700/5100/5cm, tearing strength at  900/80N;

5. Optional transparent window;

6. Wind-resist efficiency: 20m/s/ 50Pa

7. Dust-proof/ insect-proof/ waterproof;

8. Germany MZD/NBL standard polyester curtain to make it difficult to fire and non-toxic;

89 During operation, the door are rolled up in the door head.

Garage door application:

 >Indoor and outdoor large places
> Heavy industry, light industry, automobile industry, shipbuilding, manufacturing, hangars, garages, underground parking, mobile workshop.
> Wind resistance, dust-proof, heat preservation areas.

Garage door structure:

1. Door Head: stainless steel or galvanized steel cover;

2. Motor system: Gemany SEW brand brake motor, power:1.5KW~5.5KW, 380V;

3. Control System: High frequency microcomputer converter, driven by Japan  Mitsubishi cpu;

4. Door frame: cold rolled steel frame 280x180mm with 6063-T6 standard, powder-coated surface;

5. Curtain: High density polyester fiber and the surface coating processing, thickness 0.8mm-1.5mm, optional colors;

6. Wind-resist Slat: extrusion steel panal wind restant pole;

7. Door bottom: with "U" type airbag for better tight fit with the uneven ground;

Garage door technical parameters:

Garage door size: Maximum H15M × W35M.
Garage door frame: cold rolled steel with electrostatic spraying door frame 280 × 180 mm, cold rolled steel electrostatic spraying door cover.
Garage door Power: Germany SEW brake motor, power 1.5- 5.5KW, power supply 380V, brake voltage is 220V.
Control system: imported microcomputer frequency conversion to control of electric box (Mitsubishi cpu).
Control voltage: safe low-voltage 24VDC.
Garage door opening speed: open 0.3-0.8m / s / off 0.3-0.5m / s (frequency conversion can adjust the speed).
Garage door curtain material: imported high-density polyester fiber and the surface coating processing, thickness 0.8mm- 1.5mm, variety colors can be chose.
Tensile strength: 5700/5100N/5cm, tear strength 900/80N.
Fire-proofing level: German standard MZD / NBL fire resistant.
Usage temperature: -15 ℃ +70 ℃ / super cold resistance region -40 ℃.
Transparent window: import PVC transparent crystal soft plate, thickness 1.5mm, rectangle or oval.
Wind resistant material: Wind resistant press steel wind resistant pipe.
Wind resistant capability: 20m/s, 50Pa.
Sealability: the bottom U-shaped airbags can tight fitting with the uneven ground, the door side brush can be vermins-proof and dust-proof.

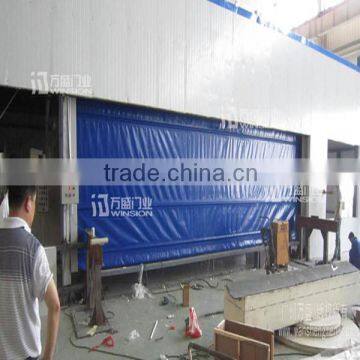

Garage door display:

Garage door Operation:

Garage door manufacturer:

Guangzhou Winsion Door Industry Co., Ltd. is specialized in producing roller Soft shutter doors, rapid roll doors, rapid doors, high speed doors, high speed rolling doors, high speed shutter doors, rapid shutter doors, automatic doors, rapid accumulation of doors, free metal doors, Industrial roller shutter doors, sliding doors and other aspects of anti-static dust engineering development, design and production and sales of high-tech enterprises, our company has strong strength, and our products are sold throughout all over the world.
