Defy Brand Geology Exploration Drilling Rig for Mine Searching

     Defy brand geology exploration drilling rig for mine searching

Brief Introduction

XY-600F hydraulic drilling rig adopts  to the  latest technology for diamond drilling works. You can choose either electric motor or diesel engine as power,according to your working environment.

1.XY-600F has 10 grades forward rotation speed and 2 grades reverse rotation speed, wide speed adjustable rang.

2. Compact mechanical transmission structure, light weight, large diameter of spindle bore, hydraulic stabilizer legs, good rigidity .

3.Advanced hydraulic system design makes the control handles concentrated, compact layout reasonable, easy operation, flexible and reliable; Can realize remote speed change,  more humanization operation.

4. Equipped with the bottom hole pressure indicator, easy to master the situation inside the hole.

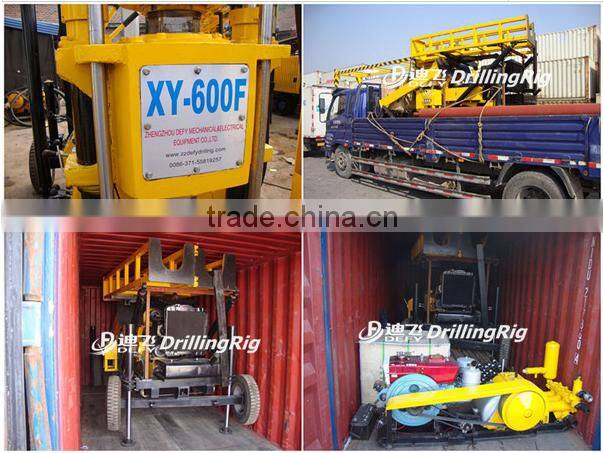

5.To meet different user requirements, there are different types of XY-600 series: XY-600F 6-wheel trailer-mounted type, XY-600C crawler-mounted self-propelled type. They all use the latest XY-600 host, hydraulic stabilizer legs, hydraulic telescope foldable drilling tower automatically rising and falling, greatly improve the working efficiency, reduces the labor intensity.The actual construction have proved that our XY-600 series dramatically increase the economic benefit of users.

Attracting features

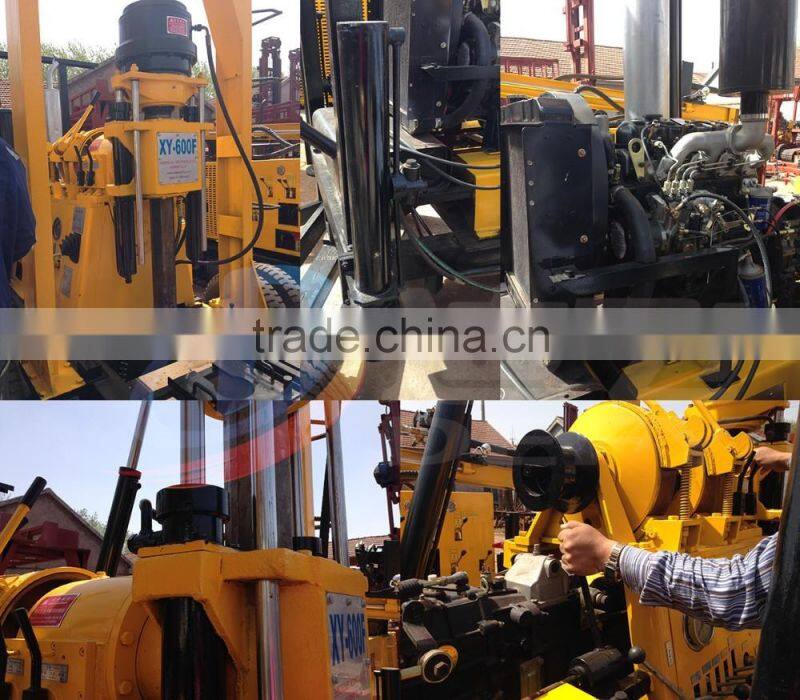

1. Hydraulic drilling tower: integrated on machine, hydraulic telescope tower, hydraulic control rise and fall

2. Independent mud pump: BW-200/250 independent mud pump with large flushing rate, wash well, cool drill bit etc. Ensuring more stable drilling

3. Winches: one main winch with extra small winch, spare hoist for wireline drilling or lift drilling tools

4. Power: 38KW electric start diesel engine, saving labor, more powerful

5. Hydraulic chuck, more accurate and easier

6. Two reverse stalls, eight forward stalls, easy to install and uninstall drilling rod

7. Four hydraulic support legs, easy to use, support stable drilling

8. 6 wheel trailer, four rear wheels, 2 front wheels, more stable and safe

Specification

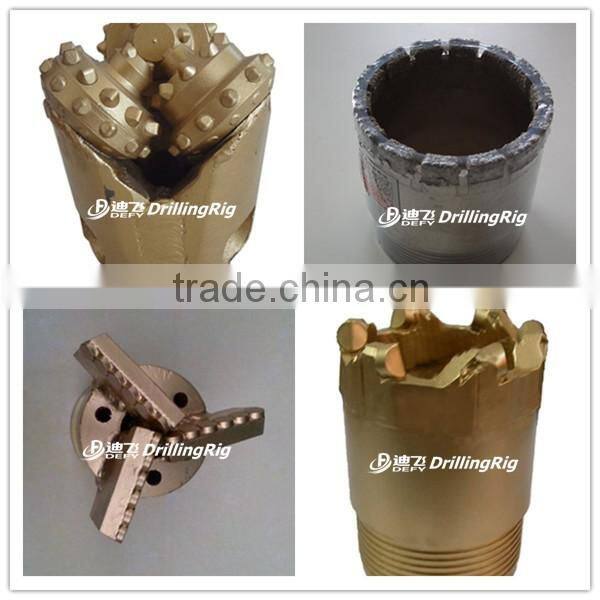

Various bits

Company Certificate
