Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Electric | Place of Origin | Henan, China | |
| Brand Name | DEFY | Model Number | DFU-M56-2 | |
| Usage | Other, metal or non-metal mineral | Dimension(L*W*H) | 2370*300*500 | |
| Weight | 350kg(main machine) | Certification | BV,SGS | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
DFU-M56-2 full hydraulic tunnel drilling machine manufacturer
1. Application:
DFU-M-2 underground tunnel drilling machine is a portable drilling rig machine, widely used for mining exploration in underground tunnel. Besides, it can also be used in railway engineering, tunneling and water conservancy project,etc. You will surely benefited a lot by its excellent and reliable performance.
2. Specification:
Drilling depth (m) | Drilling hole diameter (mm) | Drilling pipe diameter (mm) | Drilling pipe material |
550 | 36 | 33 | Aluminum |
250 | 36 | 32 | Steel |
400 | 46 | 43 | Aluminum |
210 | 46 | 42 | Steel |
270 | 56 | 53 | Aluminum |
175 | 56 | 50 | Steel |
3. Features:
1)Oil pump drive motor to rotate, hydraulic cylinder working without turret.
2)Machine’s rotation, feed, pumping and clamping rely on hydraulic transmission, to make drilling work smoothly.
3)Fast drilling speed can achieve arbitrary direction’s dip angle drilling, high applicability.
4)Adopts V-guide, the highest principal axis’concentricity.
5)Easy to operate, can be disassembled and easy transport.
4. Machine composition

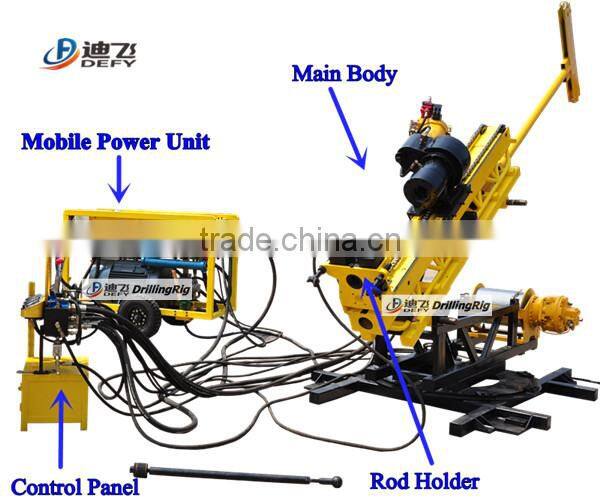

Tunnel drilling machine is composed of power unit, main machine body, control panel, rotation unit, rod holder, mud pump, etc.
Zhengzhou Defy owns our own production factory for tunnel rock drill rig machines. We will effect delivery in 5 working days on time for new and former customers.
DFU-M56-2 underground tunnel drilling machines are widely serving in mineral exploration holes, tunnel drilling projects in inland and overseas.
Please contact me if you have interest in any drilling rig machines, our technician will give you professinal suggest for model choice, operation tips, etc.
