68T Horizontal Directional Drilling Rig for HDD Pipe Laying

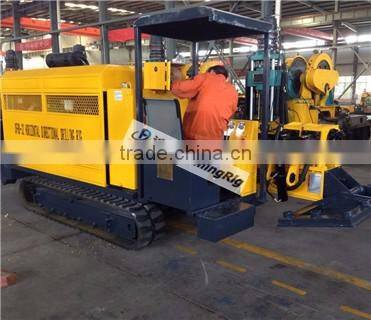

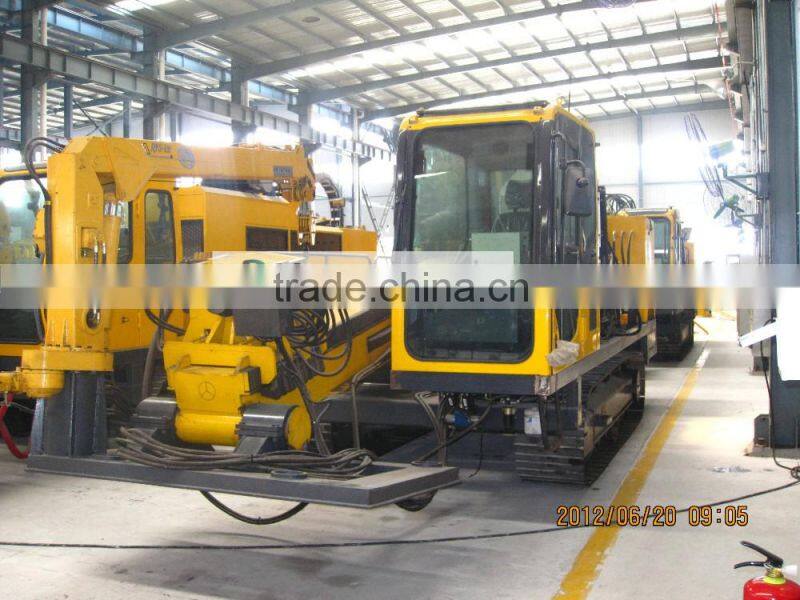

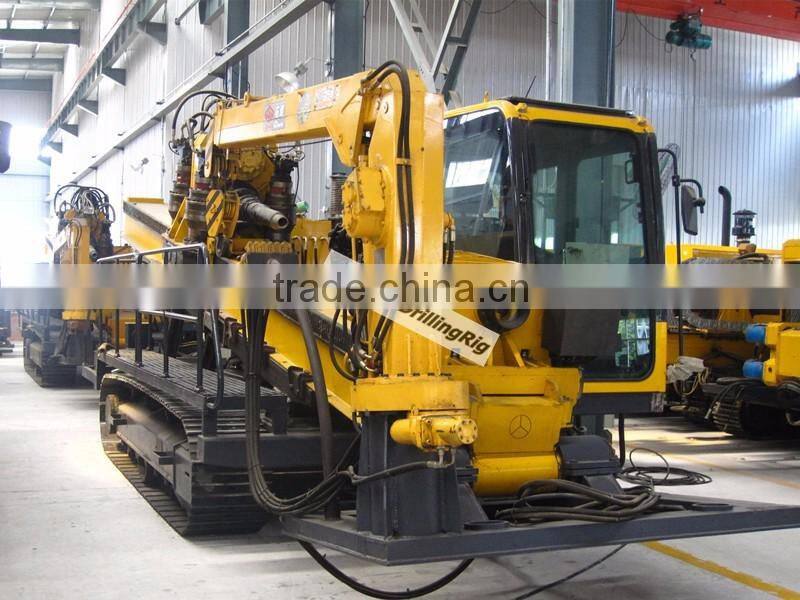

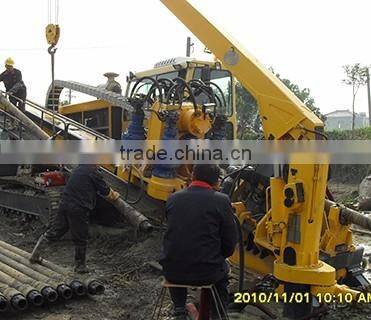

DFHD-68 Horizontal Directional Drilling Rig

DFHD-68 Horizontal Directional Drilling Rig is with full hydraulic drive, double-speed track chassis; double low-speed motors drive power head dual-speed drilling, structure is simple but advanced; rack and pinion drive system, stable and reliable movement; the mast can adjust the opening angle in 8° -16°range, innovative and unique mobile device in front and back; low gravity, good stability; equipped with an auxiliary crane; cab is equipped with air-conditioner, providing a comfortable operating environment. The main components are using world famous brand, such as diesel engine, hydraulic pumps, valves, motors, and reducer. Low-emission diesel engine, professional noise reduction design to make the rig more suitable for urban construction. The rig control technology with leading international standards, so that no-load condition power drill consumption to a minimum.

Application

1. municipal, electricity, telecommunications, water, gas, oil, gas, heat trenchless laying of pipelines.
2. The level of precipitation for the project.
3. Control Project for the bad environment (contaminant seepage treatment).
4. For long distance Forepoling project.
5. The basis for special treatment and advanced drilling and other pipe jacking project.

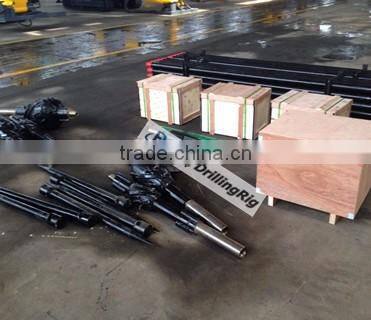

Drill Rod

Model: G105 Material

Size: 102mm*5m
Wear -resistant, good anti-stress.

Directional Drill Bit

Probe of Guide instrument is installed inside, to guide direction.

Reamer Bit

Reaming holes for pipes

Size: 159mm, 216mm, 316mm, 416mm, 516mm, 616mm, 716mm, 816mm, 900mm, 1000mm, 1100mm, 1200mm, etc.

GL-600 Guide Instrument

Main part is imported from America.
