Home > Products > Drilling Accessories > BW-200 Large Water Flushing Rate Independent Mud Pump
BW-200 Large Water Flushing Rate Independent Mud Pump
- Qingdao Shanghai or as required
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | DEFY | |
| Model Number | BW-200 | Usage | Water | |
| Power | Hydraulic | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | High Pressure | |
| Application | Other, Submersible, use together with drill rig |
Product Description
BW-200 Independent mud pump is a new type pump which is widely used in engineering geological drilling industry, small water well drilling hole flushing fluid and so on.
Technical Parameters for BW-200 mud pump
No. | Name | Technical Parameters |
1 | Model | BW-200 |
2 | Number of cylinders | 2 |
3 | Cylinder diameter | 80; 65 mm |
4 | Piston stroke | 85mm |
5 | Frequency | 145 time/min |
6 | Theoretical flow | 200; 125 L/min |
7 | Rated pressure | 4.0; 6.0 Mpa |
8 | Volume efficiency | 88% |
9 | Belt wheel speed | 530 rpm |
10 | Power | 295 diesel engine |
11 | Inlet inside diameter | 65mm |
12 | Outlet inside diameter | 37mm |
13 | Weight(Not including power) | 200kg |
14 | Dimension | L1050xW630xH820mm |

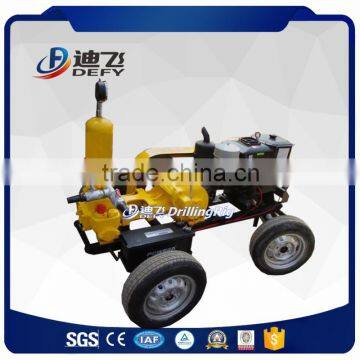

BW-200 Mud pump in factory

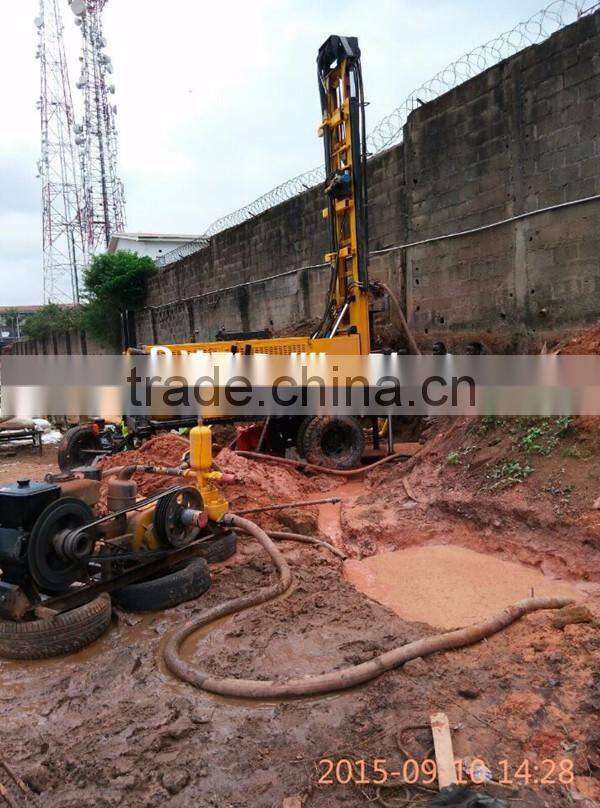

Working with DFQ-200W for opening holes
DEFY Company is professional and famous at drilling rigs and pile driver in China, because of its own team for Research & Development , Production , Quality Control, Pre-sale and After-sale Service; With the guidance by 5 rich experience (5-10 years) engineers, it has got the Toppest Sales Records on Alibaba. You can check it on the website: http://zzdefy.en.china.cn/company_profile/transaction_history.html
Now the products approved BV , SGS, ISO9001, SONCAP, etc. exported to more than 40 countries, like Chile, Argentina, Bolivia, Paraguay, Columbia, Congo, South Africa, Tanzania, Kenya, Zimbabwe, Mozambique, Algeria, Haiti, Sudan, Cameroon, Australia, Malaysia, Philipplines, Pakistan, UAE, USA, etc.
Now DEFY is the 5th Years for Exporting, two teams work for it, quick and professional reply makes each client satisfied. :)
Delivery time : depends on the quantity, usually it is 10 working days.
Quality control : we have QC department, before shipping, goods will be strictly checked.
Tech support :
- 24 hours * 7 days online pre & after sale service ;
- Factory site training or engineers go to overseas to train the workers ;
- Manual and DVD operation video.
