Home > Products > Auto Brake Disc > 9809266280 434933 434985 4246P5 4246C0 Paint Brake Disk Cast Iron Auto Parts

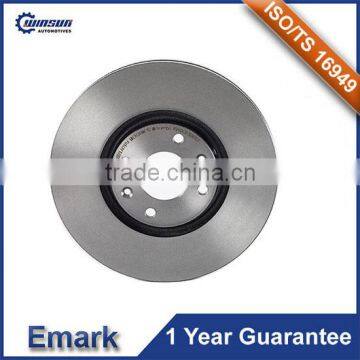

9809266280 434933 434985 4246P5 4246C0 Paint Brake Disk Cast Iron Auto Parts

FOB Price

US$ 4 - 10 / Piece

50 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

9809266280 434933 434985 4246P5 4246C0 Paint Brake Disk Cast Iron Auto Parts

Reference Number
9809266280 434933 434985 4246P5 4246C0 9687602180
Vehicle Application
Passenger Car
Specification
	Item Name	9809266280 434933 434985 4246P5 4246C0 Paint Brake Disk Cast Iron Auto Parts
A	Diameter	302 mm
B	Brake Disc Thickness	26 mm
C	Centering Diameter	66 mm
D	Height	34.2 mm
E	Pitch Circle Diameter	108 mm
	Number of holes	4
	Location	FRONT
	Solid or Vented	VENTED

6.1 Material Paragram of brake disc, rotor & brake drum:

Standard	C	Si	Mn	P	S	C.E
G3000	3.1~3.4	1.9~2.3	0.6~0.9	≤ 0.15	≤ 0.15	3.90~4.15

6.2 Mechanical Properties of brake disc, rotor & brake drum:

1) Tensile: ≥ 210 Mpa
2) Hardness : 160~241 HBS

6.3 Microstructure of brake disc, rotor & brake drum:

Main Graphite Type: A , Grade: 3~5 .
Pearlite: ≥95% Ferrite: <5%

Main Products
*C.V. Brake Disc/C.V. Brake Drum/C.V. Brake Pad Set/C.V. Brake Shoe Set/C.V.Brake Lining/Flywheel*
*Auto Brake Disc/Auto. Brake Drum/Auto. Brake Pad Set*
Main Application
*European & American & Japanese Commercial Vehicle, Main Brand Passenger Car*
