Home > Products > Carbon Road Rims > CBK Aero Design 45mm Deep 700c Road Racing Bike Dimple Carbon Rims Tubular
CBK Aero Design 45mm Deep 700c Road Racing Bike Dimple Carbon Rims Tubular
US$ 160 - 200
/ Piece
1 Piece(Min. Order)
- XIAMEN CHINA
- Credit Card
You May Like
-
CarbonBikeKits Good Quality Carbon 50mm Clincher Alloy Rim CA50-25 Quality Choice
-
CarbonbikeKits CA50-23 50mm Clincher Carbon Fiber Bike Rim With Alloy Braking Surface
-
CarbonBikeKits Bike 25mm Wide 88mm Clincher Carbon Cycling Rim
-
Hot Selling! CarbonBikeKits 700C 38mm32h Carbon Tubular Rims 20/24 Hole Baslt Braking UD NR38T
-
CarbonBikeKits 23mm Wide T700 Road Full Carbon Bicycle Tubular 20mm Quality Choice
-
Carbon Rim 23mm Wide 88mm Clincher Bicycle Wheel Rims Carbon Bike Rm CR88C
Product Details
| Wheel Material | Carbon | Size | 24-28inches | |
| Spoke Hole | Other, 16-32H | Finishing | 3K/UD/Marble | |
| Place of Origin | Fujian, China | Brand Name | CarbonBikeKits | |
| Model Number | SP45T |
Product Description

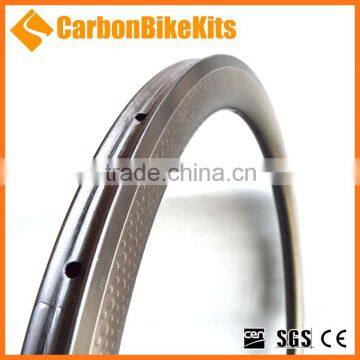

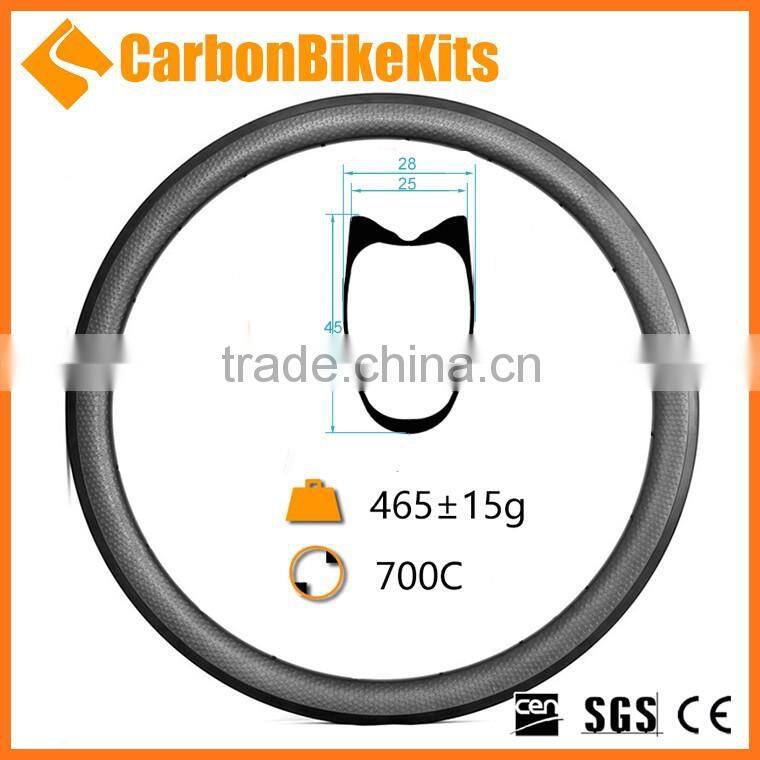

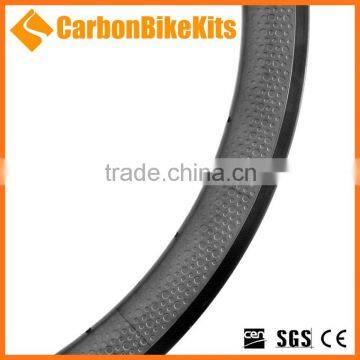

CBK aero design 45mm deep 700c road racing bike dimple carbon rims tubular
Product Description
| Basic Information | ||||
| Model Number | SP45C/45T | Material | Toray Carbon T700 | |
| Rim Wide | 25mm | Rim Type | Clincher/Tubular | |
| Rim Depth | 50mm | Spoke Holes | 16/18/20/24/28/32 | |
| Finish | 3K/UD | Brake Surface | Basalt/Carbon | |
| ERD | 550 | Weight | 465±20g | |
| Tech Information | ||||
| Compressive Strength | > 460kg | Vertical Stiffness(40kg) | < 0.5mm | |
| Horizontal Stiffness(11.5kg) | < 3.8 | Spoles Tension | >350kg | |
| Impact | 90J | Wheel Impact | 115J | |
| Roundness | < 0.5 | Dynamic Equilibrium | < 2g | |
| Spoke Hole's Diameter | 4.5mm | Groov's Depth | 8.4mm | |
| Valve's Diameter | 6.5mm | Brake Surface's Flatness | <0.25(Both Side) | |
| Max tyre pressure | 125psi/8.5bars | Max weight limit | 110kg/225lbs | |
| Max spoke tension | 300kgf | Standard | EN Standard | |
| Decal | Customized | Warranty | 1 Year | |
Features
One Piece Molding-New Processing on carbon rims:Stronger and stabilized structure Better Finish.
Triangle Design:Stronger and stabilized structure Maintain the stiffness of the resin system.
Extra Carbon Fiber Strip :Reinforced on spoke hole Ensure the rims will not be damaged if a spoke breaks.
Lightweight Design:As much as possible less weight Light weight wheels provide much better acceleration and climb.
Basalt Brake Surface :Braking process under control More safety for riders high durability, wear reduced.

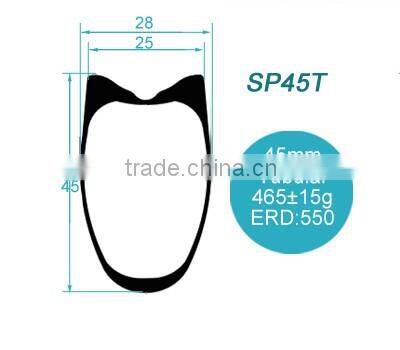

Geometry

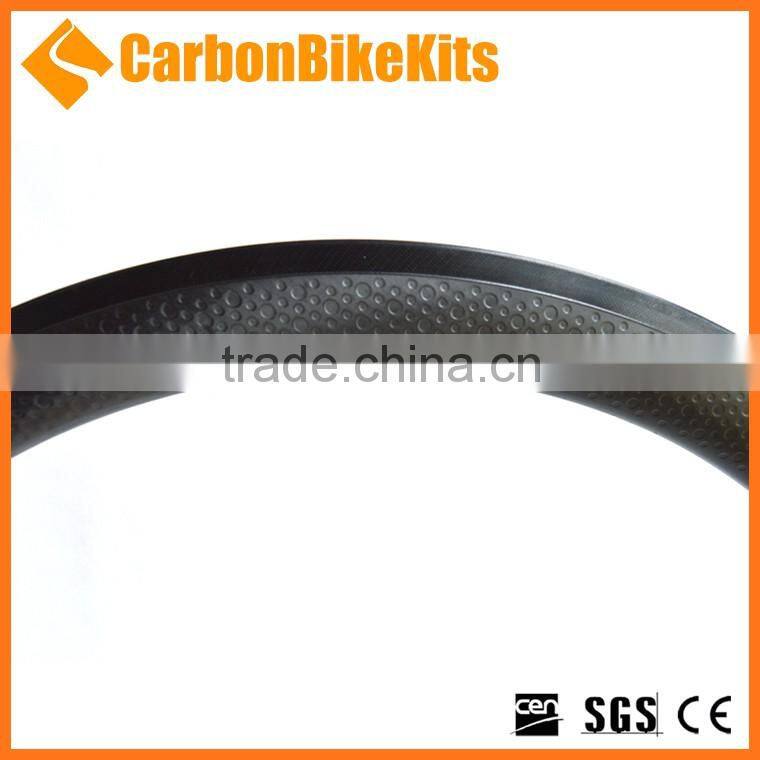

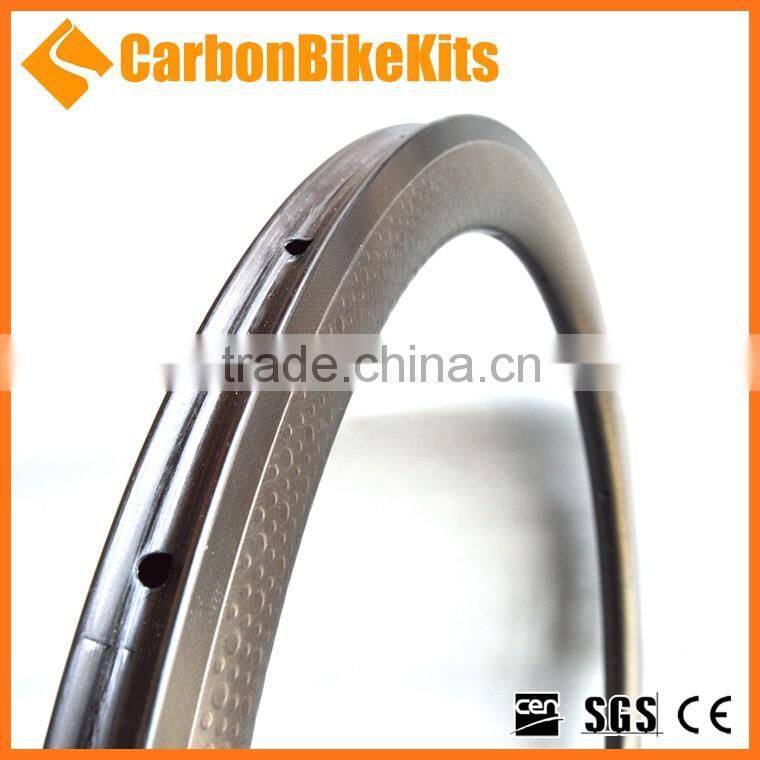

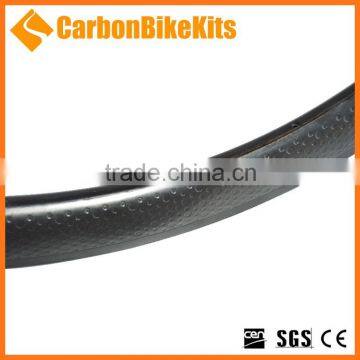

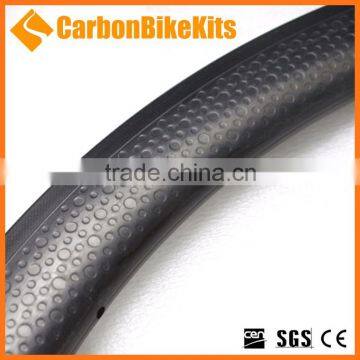

Photos
Rim Tech
FAQ
| Q1:How to place an order? 1). We have join Alibaba "Trade Assurance' plan,On our alibaba website product page you would like and click the "Start order" button to add to your cart. 2). Confirm the price, lead time, artwork, payment term etc. CarbonBikeKits sales will send proforma invoice to you. Q2:What is the delivery time? Rim/Wheels 3-14days for sample order, bulk order 20days more or less, Frame 30-45days. Q3:What is the minimum order quantity? We do not need MOQ, sample order and bulk order are available Q4:Warranty? 2 years exchange warranty.If items are in original condition, 30 days return and refund are accepted. Buyer pays return shipping. This warranty does not cover: @Normal wear and tear, any damage caused by accident, misuse, neglect, abuse, or stunt riding (veld bashing, riding down stairs, or similar activities). @Improper assembly or improper maintenance is not covered by warranty. |
Shipping & Payment
Shipping
Will be shipped from Asia by Registered air mail ( DHL/EMS/TNT/FedEX/UPS) with tracking number, take 3 ~ 20 business days to arrive normally.
We also have best express way for avoid hight tax, but shipping fee is hight than EMS, more detail about the way to avoid hight tax, please contact info(at)
Payment
Paypal, bank transfer,Western union
