for Sale Brushless Hub Motor High Quality Electric Conversion Bicycle Kit

FOB Price

US$ 250 - 350 / Set

5 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Top or OEM
Model Number	CR-500F

for sale brushless hub motor high quality electric conversion bicycle kit

The advantage of this kits:

1, This kits can be installed on standard normal bike frame easily, no need to change the frame.

2, High starting torque, good performance on working and climbing.

3, Double brake levers with power off brake, more safety.

4, High efficiency, low consumption, long travel distance.

Kit model No.	CR-500F
Motor	500W (optional: 180-250W for EU, 250-350W for US, 200W for Ausralia&New Zealand)
Motor	front or rear, diameter 108mm for front and 135mm for rear, with sensor, disc brake option
Rim and spokes	Aluminum Alloy rim, 24"26"700C 28" with 36 spokes
Throttle	twist or thumb throttle with LCD display
Controller	48V hall sensor optional
Wheel	Hand-built motor wheel
PAS	8pcs strong magnets
Battery	48V 10Ah (optional others)
Brake levers	Aluminum alloy, in black color
Charger	110-240V, 2A
Max Speed	35-40KM
Max Load	100kg
N.W./G.W.	12kg/14kg

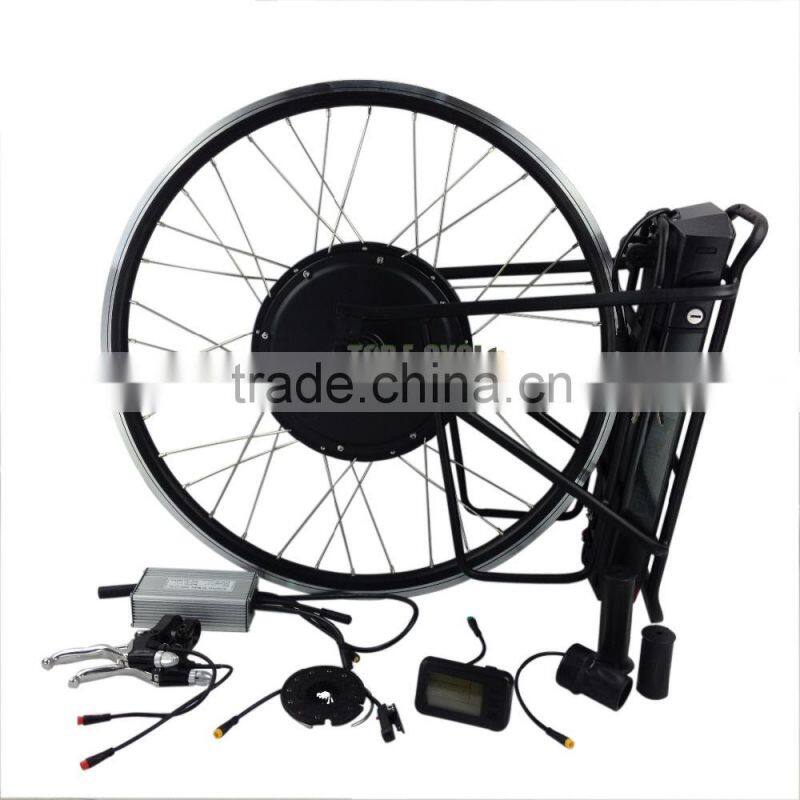

Our electric bike kit CR-500F including the below parts:

No.	Parts Name:	QTY:
1	Hand-built Motor wheel (spokes,rim, motor)	1 SET
2	Battery set	1 SET
3	Charger	1 PC
4	Controller	1 PC
5	Controller case/bag	1 PC
6	Display	1 SET
7	Brake Levers	1 PAIR
8	Throttle&grips	1 SET
9	PAS	1 SET
10	Manual,Zip ties,Screws,protection pipe	1 SET

Packing details:
