electrical bicycle conversion kit

FOB Price

USD $250 - $299 / Set

5 Sets(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Part

Other, Electric bike kit

Place of Origin

Zhejiang, China

Electric bike kit accessories:
1.Motor:brushless hub motor
2.Controller:36V12A
3.Display:LCD/LED display
4.Battery:Optional

Product Description

Brushless gearless motor: no gear means reliable, quiet, high efficiency, long working life, maintenance free.
Built-in controller: no messy exposed wirings, less connection problems, easy to install, neat looking products.
Strong climbing torque: achieved by using strong rare earth magnets, innovative motor design, and top quality mosfets used.

Kit Name
Motor	250W brushless hub motor
Motor	front or rear, diameter 103mm for front and 135mm for rear, with sensor, disc brake and V brake applied
Rim and spokes	Aluminum Alloy rim, 20''24"26"700C 28" with 36 spokes
Throttle	twist throttle with LED/LCD display for battery level
Controller	36V15A
Wheel	Hand-built motor wheel
PAS	8pcs strong magnets
Battery	36V 10AH in case A-120, 10-20A discharging, Max 8A charging, 4.1kg
Brake levers	Aluminum alloy, in black color
Charger	42V 2A charger with plastic case
Max Speed	25km/h(EU), 32km/h(USA)
Max Load	100kg
N.W./G.W.	12kg/15kg

Packaging list

NO.	Parts Name	QTY
1	Hand-built Motor wheel (spokes, rim, motor)	1 SET
2	Battery&charger( optional part)	1 SET
3	Controller&controller case/bag	1 PC
4	Display	1 PC
5	Brake Levers	1 PAIR
6	Throttle&grips	Optional
7	PAS	1 SET
8	LED Light	1 SET
9	Zip,ties,Screws,protection pipe	1 SET

Service&Warrant

Frame: 12months quality warranty.

Battery: we provide 18 months quality guarantee for Li-ion battery.

BATTERY

CONTROLLER

MOTOR

FACTORY

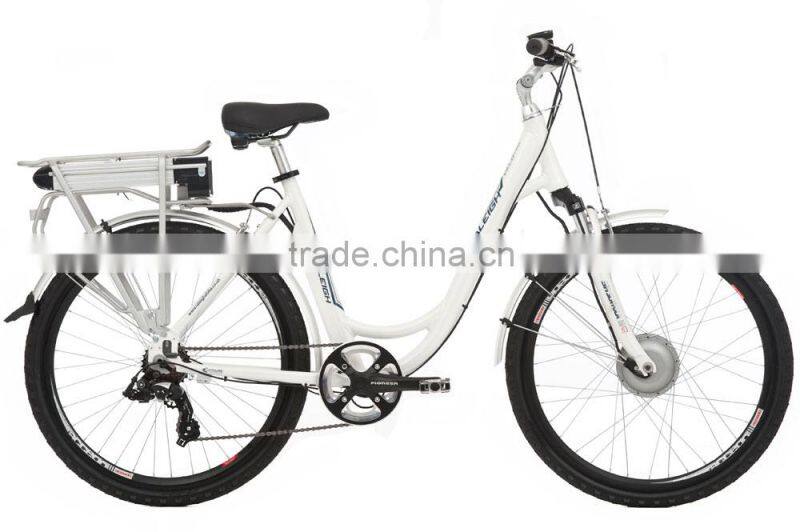

ELECTRIC BICYCLE
