Home > Products > New Products > Wood Veneer and Fleece Laminating Machine

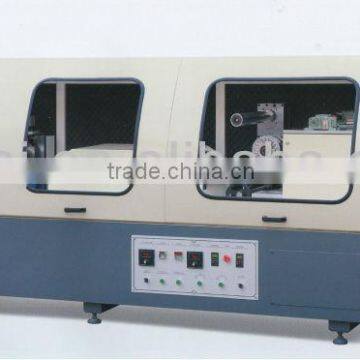

Wood Veneer and Fleece Laminating Machine
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Type | Other | |
| Place of Origin | Shandong, China | Brand Name | HZH | |
| Model Number | FH300 | Voltage | 380V | |
| Power(W) | 4.1Kw | Dimension(L*W*H) | 3800*1100*1700mm | |
| Weight | 1400kg | Certification | ISO 9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1 with higher stability2 Max. processing width 300mm
3 Veneer thickness:0.3~1mm
4 Certificate:ISO9001
We supply high quality Woodworking Veneer and Fleece Laminating Machine
Model FH300
| Max. processing width | 300mm |
| Processing thickness | 0.3~1mm |
| Feeding speed | 0~25m/min |
| Total Power | 4.1Kw |
| Compressed air | 0.3 m3/h |
| Overall dimensions | 3800×1100×1700mm |
| Weight | 1400kg |
Function:
It can be used to laminate fleece on the back of veneer to improve the strength and toughness for sanding. Gluing and heating is at the same time. The working speed can be adjusted stepless.
Online video
/v_show/id_XNTQzMDA4MjU2.html
Veneer Finger Joint Prodction Line Process
Dried sliced veneer→Finger joint→Winding→Fleece laminating→Sanding→Slitting→Finished product
Package: PE film packing and fit in container directly.
Delivery: About 30 days after receive the down payment.
Warranty: Machine supplied quality guarantee period is: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
