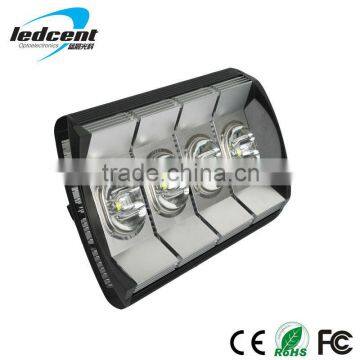

Led tunnel light 160W module design patent products
US$ 210 - 310
/ Piece
10 Pieces(Min. Order)
- Guangzhou Shenzhen Zhongshan
- T/T
You May Like
Product Details
| LED Light Source | Bridgelux chip | Input Voltage(V) | AC85-265V | |
| Lamp Power(W) | 160 | Lamp Luminous Flux(lm) | 17200 | |
| Lamp Luminous Efficiency(lm/w) | 100 | Color Temperature(CCT) | Other, 2500K-6500K | |
| Working Temperature(℃) | 40, 55 | Working Lifetime(Hour) | 50000 | |
| Lamp Body Material | Aluminum Alloy | IP Rating | IP67 | |
| Certification | CCC, CE | Warranty(Year) | 3 | |
| Place of Origin | Guangdong, China | Brand Name | Ledcent | |
| Model Number | LC-SD001-4-160 |
Product Description
Specifications
Led tunnel light 160W1.Bridgelux COB chip
2.Meanwell driver
3.110W/lm,17200lm
4.3 years guarantee time
Led tunnel light 160W module design patent products
160W Street Light Parameter | ||
Item No. | LC-SD001-4-160 | led tunnel light |
Material | Aluminum-alloy | stainless steel screws |
Power: | 160W | 4*40W |
Product size: | L560*W320*H260mm |
|
Lumen | 17200lm |
|
Color temperature | 2500K-6500K |
|
Input voltage | AC85-265V | DC127-431V |
Color rendering index | CRI≥75 |
|
Power efficiency | 92% |
|
Power factor | 0.98 |
|
Total harmonic distortion | <15% |
|
Working temperature | -40°C-55°C |
|
Humidity | 10%~95% |
|
IP Rating | IP67 |
|
Life span | >50000hours |
|
Led chip | Bridgelux |
|
Design | Module design |
|
Finish | Painted |
|
Color | Black | White is avaliable |
Net weight | 10.5kg |
|
Packing size | L680*W410*H240mm | one piece in one carton |
