Post Tension Ring Prestressed Wedge Anchor
- Tianjin
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Tianjin, China | Brand Name | Ron-en | |
| Model Number | KM series | Type | Wedge Anchor | |
| Material | Steel | Standard | GB |
Product Description
Welcome to visit Ron-en company! ( Post tension ring prestressed wedge anchor )
Please refer to our main products below:
A: Mono strand anchor system: 5mm,7mm, 8.0mm, 9.0(9.52mm) anchors for steel wir

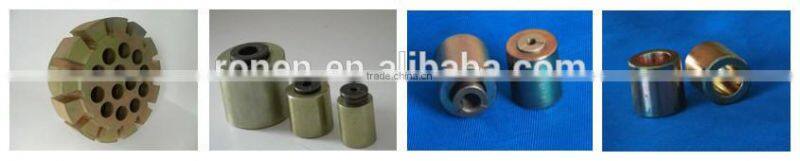

B: Multi stand anchor system: 9.52mm, 12.7mm, 12.9mm, 15.24mm, 15.7mm, 21.6mm, 22mm anchors for pc strand.

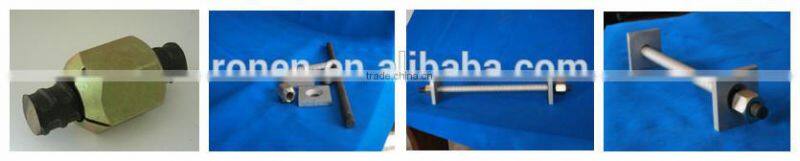

C: Steel rear anchor system: 16mm, 18mm. 22mm, 24mm, 26mm, 28mm, 32mm, ect.

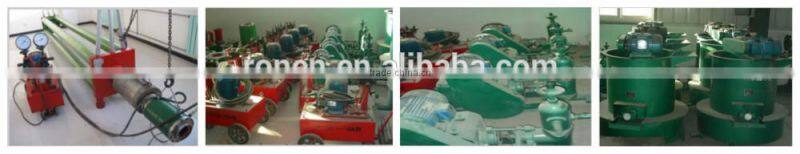

D: Equipments: metal ducts making machine, pc strand(steel wire) pulling machine, extruding machine, ect.

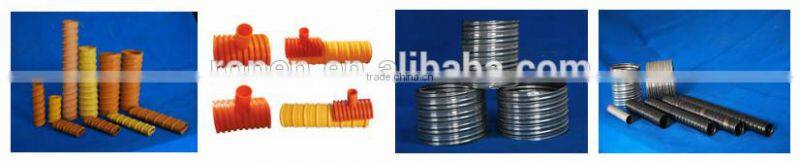

E: Building materials: unbonded pc strand, bonded(bare) pc strand, 4mm to 10mm pc steel wire, metal ducts, plastic ducts, steel strip.

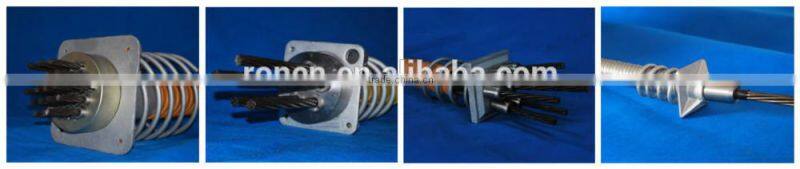

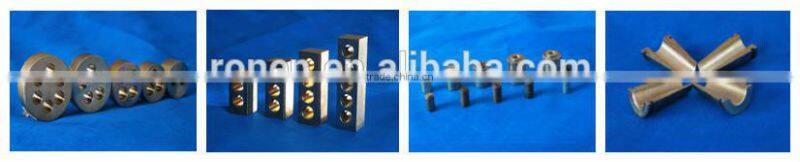

Products Show:
Technical data:
Model | Number of Strand | Anchor Head | Corrugated Pipe I.D. | Bearing | Spiral | The Matched | |
AxBxφC | øD | Plate | Reinforcement | Jack type | |||
øExF | øGxøHxI | Numberof | |||||
Cycles | |||||||
RN15-1 | 1 | 80x80xσ14 | ø48x47 | ø80xø6x30 | 4 | QYC270 | |
RN 15-2 | 2 | 122x100xø81 | ø50 | ø83x48 | ø130xø10x40 | 4 | YDC650 |
RN 15-3 | 3 | 125x100xø83 | ø50 | ø87x49 | ø130xø10x40 | 4 | YDC1000 |
RN 15-4 | 4 | 145x110xø90 | ø55 | ø98x50 | ø150xø10x50 | 4 | YDC1500 |
RN 15-5 | 5 | 160x120xø93 | ø55 | ø108x50 | ø165xø12x50 | 4 | YDC1500 |
RN 15-6 | 6 | 190x150xø106 | ø70 | ø128x50 | ø200xø12x50 | 4 | YDC2000 |
RN 15-7 | 7 | 190x150xø106 | ø70 | ø128x50 | ø200xø12x50 | 4 | YDC2000 |
RN 15-8 | 8 | 205x155xø125 | ø80 | ø138x54 | ø210xø14x50 | 5 | YDC2000 |
RN 15-9 | 9 | 215x170xø125 | ø80 | ø148x56 | ø220xø14x50 | 5 | YDC2500 |
RN 15-10 | 10 | 230x185xø142 | ø90 | ø158x59 | ø230xø14x50 | 6 | YDC2500 |
Three options of customers usually oder:
A: Complete sets: Anchor Head(Ring)+ Wedges+ Anchor Plates+ Spiral Spring Ring
B: Three sets: Anchor Head(Ring)+ Wedges+ Anchor Plates
C: Two sets: Anchor Head(Ring)+ Wedges
Best price: No matter you are a seller ot end user, we will provide you our best price for our tuture cooperation.
Professional services: 1x7 days 24 hours service online, and engineer can service oversea
Samples: We are free to provide you sample for your test
A: Please tell me how many holes anchor do you need?
B: What is your required diameter for pc strand you use?
1. How many holes anchor do you need?
2. Do you need stress end anchor or dead(fixed) end anhcor?
3. what is your required dimater for pc strand you use?
