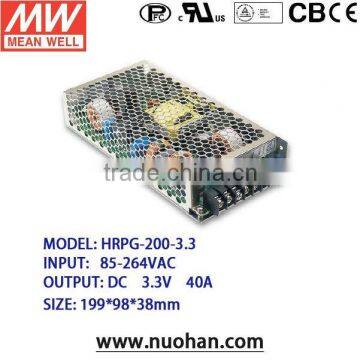

Mean Well 200W Power Supply HRPG-200-3.3 200W PFC Power Supply

MODEL

HRPG-200-3.3

OUTPUT

DC VOLTAGE

3.3V

RATED CURRENT

40A

CURRENT RANGE

0 ~ 40A

RATED POWER

132W

RIPPLE & NOISE (max.)   Note.2

80mVp-p

VOLTAGE ADJ. RANGE

2.8 ~ 3.8V

VOLTAGE TOLERANCE Note.3

±2.0%

LINE REGULATION

±0.5%

LOAD REGULATION

±1.5%

SETUP, RISE TIME

1000ms, 50ms/230VAC         2500ms, 50ms/115VAC at full load

HOLD UP TIME (Typ.)

16ms/230VAC         16ms/115VAC at full load

INPUT

VOLTAGE RANGE    Note. 5

85 ~ 264VAC         120 ~ 370VDC

FREQUENCY RANGE

47~63HZ

POWER FACTOR (Typ.)

PF>0.95/230VAC   PF>0.99/115VAC at full load

EFFICIENCY (Typ.)

80%

AC CURRENT (Typ.)

2.2A/115VAC       1.1A/230VAC

INRUSH CURRENT (Typ.)

35A/115VAC         70A/230VAC

LEAKAGE CURRENT

<1.2mA / 240VAC

PROTECTION

OVER LOAD

105~135% rated output power

Protection type : Constant current limiting, recovers automatically after fault condition is removed

OVER VOLTAGE

3.96 ~ 4.62V

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE (OPTIONAL)

95°C±5°C(TSW1) detect on heatsink of power transistor

105°C±5°C(TSW2) detect on main power output choke

Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

5V STANDBY

5VSB : 5V at 0.3A ; tolerance ±5%, ripple : 50mVp-p(max.)

REMOTE CONTROL

RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off

ENVIRONMENT

WORKING TEMP.

-40~+70°C, (Refer to "Derating Curve")

WORKING HUMIDITY

20~90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40~+85°C,   10~95°C RH

TEMP. COEFFICIENT

±0.03%/°C(0~50°C)

VIBRATION

10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY&EMC

(Note 4)

SAFETY STANDARDS

UL60950-1, TUV EN60950-1 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC     I/P-FG:2KVAC     O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH

EMC EMISSION

Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2, heavy industry level, criteria A

OTHERS

MTBF

189.1K hrs min.      MIL-HDBK-217F (25°C)

DIMENSION

199*98*38mm (L*W*H)

PACKING

0.77Kg; 18pcs/14.9Kg/0.9CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance: includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”

5. Derating may be needed under low input voltages. Please check the derating curve for more details.

6. No load power consumption<0.5W when RC- & RC+ (CN100 pin5,6) 0 ~ 0.8V or short.
