Meanwell 1000W Modified Sine Wave DC-AC Power Inverter 24v Inverter/dc to ac Inverter Design Circuit

ORDER NO.

A302-1K0-F3

OUTPUT

SAFETY MODEL NO.

A-1000W

AC VOLTAGE

230V

RATED POWER

1000W

PEAK POWER

1200W<30min.

SURGE POWER

2400W

WAVE FORM

Modified Sine Wave

FREQUENCY

50Hz ±1%

AC REGULATION

±10%

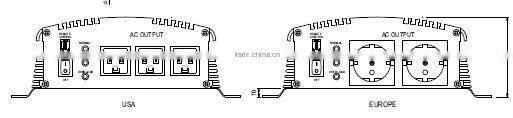

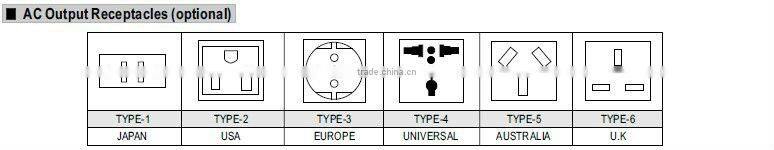

STANDARD RECEPTACLES

TYPE-3* 2ea

LED INDICATOR

Green LED for power on; Yellow LED for O.T.P.; Red LED for power failure status

INPUT

DC CURRENT

55A

NO LOAD CURRENT DRAW

0.2A

DC VOLTAGE

24V

VOLTAGE RANGE

21~ 30VDC

EFFICIENCY (Typ.)

85%

DC CONNECTOR

1000mm R type terminal

FUSE

20 A * 5

PROTECTION

BAT. LOW ALARM

21± 0.8V

BAT. LOW SHUTDOWN

20 ± 0.8V

OVER LOAD

>1200W shut down o/p voltage, re-power to recover

OVER VOLTAGE

29~31V

OVER TEMPERATURE

60± 5°C / 140± 9F

OUTPUT SHORT

Shut-off

BAT. POLARITY

By fuse open

ENVIRONMENT

WORKING TEMP.

0~30°C at 100% load, 40°C at 70% load

WORKING HUMIDITY

20%~90% RH non-condensing

STORAGE TEMP., HUMIDITY

-30~+70°C / -22~ +158 F, 10~95%RH

TEMP. COEFFICIENT

±0.05%/°C (0~50°C)

SAFETY&EMC

ISOLATION RESISTANCE

I/P-O/P: 100M Ohms / 500VDC / 25°C/ 70% RH

EMI CONDUCTION & RADIATION

Compliance to EN55022 class B, 72/ 245/ CEE, 95/ 54/ CE

EMC IMMUNITY

Compliance to EN61000-4-2,3

LVD

Compliance to EN60950

OTHERS

MTBF

98Khrs min. MIL-HDBK-217F (25°C)

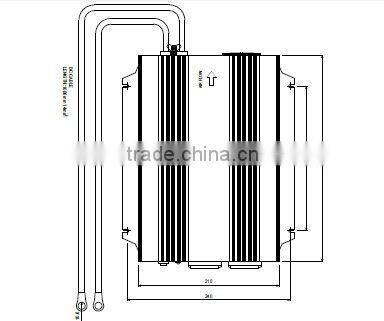

DIMENSION

310*210*85mm (L*W*H)

PACKING

3.3kg ; 4pcs / 17.5kg / CARTON

COOLING

>40°C (NTC) fan on

APPLICATIONS

Home appliance, Power tools, Office and Portable equipment and Vehicle ...etc.
