W8L longbow Empty speaker cabinets/Empty Speaker box
- 500 Piece / Pieces per Month
- Guangzhou
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | RKB | |
| Model Number | W8L-Longbow |
Product Description

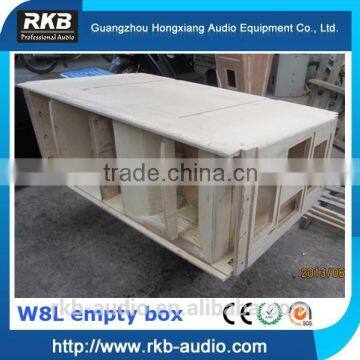

W8L longbow empty speaker cabinets
Passive line array system enclosure, empty speaker boxes
outdoor line array box
The W8L LONGBOW is a large 3-way line array system for large scale sound reinforcement. It is a 3-way design housing fitted with 1x15” LF drivers, 2x8” MF drivers and 4x 1” HF drivers. The enclosure has a trapezoidal shape, consist of 18mm plywood with aluminum plates at front and rear.
FEATURES:
*Passive three-way line array system, with refined and improved technic.
*Capable of forming a continuous, equiphase linear sound source.
*Easy to control the coverage.
*Extremely high sound pressure levels and long distance.
*High-protection water paint to make sure the durability of the cabinet, to prevent it from scratch or hit.
*Above the high-strength metal grill, there is high-transmission acoustic foam, to keep it away from dust and rain.
*Trapezoidal box design with the seamless gap between two cabinets.
*Super-wide dynamic range and high-resolution.
APPLICATIONS:
*Medium and large theaters/Auditoriums
*Medium and large outdoor stadiums
*Medium and large music halls
*Medium and large conference center
*Medium and large touring sound system
SPECIFICATIONS:
Model: W8L-LONGBOW
Components: LF:1x15”, MF:2x8” HF:4x1”
Frequency Response: 60Hz - 18kHz(±3dB)
Sensitivity(1W/1M): HF:109dB MF:106dB LF:103dB
Maximum Peak SPL: 140dB
Rated Power(RMS): HF:200W MF:240W LF:800W
Peak Power(PEAK): HF:400W MF:480W LF:1600W
Impedance(Ohm): HF:12 Ohm; MF:16 Ohm; LF:8 Ohm
Crossover: /
Dispersion Angle (-6dB): 90H x 0-6V (-6dB);
Connectors: 2xNL8 Speakon
Enclosure Material: High strength plywood
Cabinet Finish: Germany Water Paint
Dimensions (W*D*H): 1314*754*490 mm
Net. W.: 97Kgs
