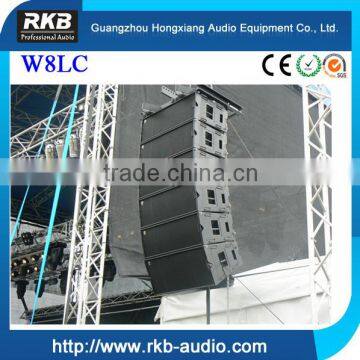

line array dj speaker

Features:

*W8LC is a passive three-way line array system, with refined and improved technic.

*The whole system is capable of forming a continuous, equiphase linear sound source.

*The speaker cabinet is easy to control the coverage.

*Extremely high sound pressure levels and long distance.

*High-protection water paint to make sure the durability of the cabinet, to prevent it from scratch or hit.

*Above the high-strength metal grille, there is high-transmission acoustic foam, to keep it away from dust and rain.

*Trapezoidal box design with the seamless gap between two cabinets.

*Super-wide dynamic range and high-resolution.

*Most suitable for modern stadium, square, live show, big conference hall, and academic hall.

Applications:

*Medium and large theaters/ Auditoriums

*Medium and large outdoor stadiums

*Medium and large music halls

*Medium and large conference center

*Medium and large touring sound system

Specifications:

Model

W8LC

Components

LF:1x12”
MF:2x6.5”
HF:3x1.73”

Frequency Response

60Hz - 18kHz(±3dB)

Sensitivity(1W/1M)

HF:109dB   MF:106dB   LF:103dB

Maximum Peak SPL

135dB

Rated Power(RMS)

HF:100W MF:200W LF:400W

Peak Power(PEAK)

HF:200W MF:400W LF:800W

Impedance(Ohm)

HF:12 Ohm; MF:16 Ohm; LF:8 Ohm

Crossover

/

Dispersion Angle(-6dB)

90H x 0-6V (-6dB);     120H x 0-6V (-12dB)

Connectors

2xNL8 Speakon

Riggings

Standard Rigging Attached

Enclosure Material

High-strength Plywood

Cabinet Finish

Germany Water Paint

Protective Grille

Black Perforated Steel with Acoustic Cloth on surface

Dimensions (mm)

366*1007*550

Net. W.

51.7 kg
