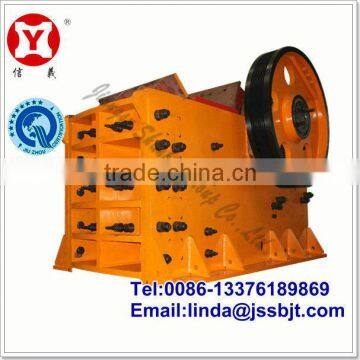

PE Stone Jaw Crusher

FOB Price

US$ 1,999 - 999,999 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Jaw Crusher
Application	It is widely used in mining, metallurgical industry ,building materia	Motor Type	AC Motor
Power(W)	5.5-355kw	Capacity(t/h)	0.96-1000
Place of Origin	Jiangsu, China	Brand Name	xinyi
Model Number	PE	Weight	0.8-122 t
Certification	ISO9001:2008	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

PE Stone Jaw Crusher

1.This series of jaw crusher makes a feature of great crushing ratio, uniform size of fineness , easy maintenance and less operating cost.

2.It is widely used in mining, metallurgical industry ,building material ,highway, railway, water conservancy and chemical industries.

3.Various materials with compressive resistance less than 320Mpa can be crushed.

principal technical data

Model	Feeding Opening (mm)	Max. Feeding Size(mm)	C.S.S (mm)	Capacity (t/h)	Electric motor power(kw)	Weight(t)(excluding electric motor)
PE-150×250	150×250	130	10-40	0.96-4.8	5.5	0.8
PE-250×400	250×400	210	20-80	5-20	15	2.8
PE-400×600	400×600	340	40-100	16-64	30	6.5
PE-500×750	500×750	425	50-100	45.6-100	55	10.3
PE-600×900	600×900	500	65-160	48-120	55/75	15.5
PE-750×1060	750×1060	630	80-140	51-208	110	25.1
PE-800×1060	800×1060	650	100-200	136-228.8	110	28.3
PE-870×1060	870×1060	670	200-260	288-384	110	28.7
PE-900×1200I	900×1200	750	100-200	144-304	132	50
PE-900×1200	900×1200	750	100-200	144-304	132	43.3
PE-1000×1200	1000×1200	850	195-265	315-342	132	50.6
PE-1200×1500	1200×1500	1020	150-350	300-800	220	83
PE-1500×1800	1500×1800	1200	220-350	450-1000	355	122
PEX-150×750	150×750	120	18-48	8-25.6	15	3.5
PEX-250×750	250×750	210	25-60	12.8-35.2	22	5.1
PEX-250×1000	250×1000	210	25-60	16-51.2	37/30	6.5
PEX-250×1200	250×1200	210	25-60	20-60	37	7.7
PEX-300×1300	300×1300	250	20-90	10-104	75	11

This specification is just for reference; any change is subject to the Jaw Crusher products
