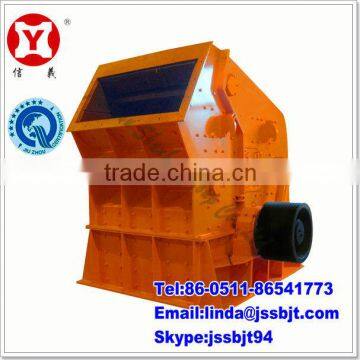

Impact Crusher - PF-1210VI

Impact Crusher-PF-1210VI

1.Usage and Application

Impact crusher is used in mineral dressing, chemical industry, cement, building materials, fire-proof materials, ceramics, glass and other industries, for crushing medium hardness ore, such as limestone, quicklime, slag, calcium salt, clay mine, building materials, coke, coal and other materials which with the compression strength up to 350Mpa

2.Features

(1) can be crushed for hard rocks

(2) connection with locking sleeve assembly

(3) the blow bar with high chrome

(4) hydraulic or hand opening

(5) impact plate with special shape

3. Working Principle.

When the impact crusher works, the motor drives the rotor rotate of the impact crusher with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won’t stop till the material are crushed to the required size and then discharged from outlet of the impact crusher.

technical data
