Home > Products > CATV Amplifier > 860MHz Catv Outdoor Trunk Amplifier / 5/30 MHz Reverse Path and Import Module

860MHz Catv Outdoor Trunk Amplifier / 5/30 MHz Reverse Path and Import Module

FOB Price

US$ 260 - 360 / Set

1 Set(Min. Order)

Port Shanghai/Shenzhen/Tianjin
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Jizhong	Model Number	JZE8130/30CA
Type	Home Amplifier	Channels	1
Place of Origin	Shaanxi, China

Product Description

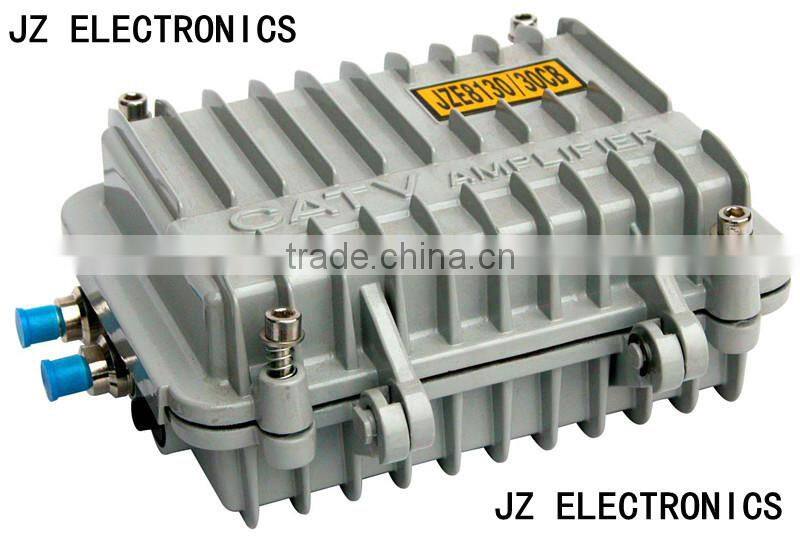

860MHz Catv outdoor Trunk Amplifier / 65/87MHz Reverse Path and Import Module

1.Description:

CATV amplifier applies to catv trunk and distribution system.

--- Our JZS series of amplifier has two-way broadband design with dual-stage both forword and reverse.

---With back-stage power dual amplifier output.

---It has characteristics of wide working range and strong output.

--- Power has input protection path and can keep the stablityand reliability.

--- Push-pull preamplifier and power implantation after double type of module to minimize distortion.

2.Technical parameters :

(Forward)

Item	Unit	JZE8130/30CA
Forward Frequency Range	MHz	47~550/750/860
Nominal Gain	dB	30
Flatness in Band	dB	±0.4
Nominal Input Level	dBμV	72
Nominal Output Level	dBμV	98
Gain Adjustable Range	dB	0~20
Slope Adjustable Range	dB	0~30(750MHz to fix 12dB)
Noise Figure	dB	≤8
Temperature Compensation Range	dB	±2(±30°C)
CTB	dB	64
CSO	dB	61

(Reverse)

Item	Unit	JZE8130/30CA
Reverse Loss	dB	≥16
Signal Alternating Voice Ratio	dB	≥66
Lightning Stroke Resisting Ability	KV	5(10/700us)
Working Voltage	V	A60V B220V
Reverse Frequency Range	MHz	5~30( user decided)
Nominal Gain	dB	0 or 20 dB(optional)
Flatness in Band	dB	±0.5
Reverse Loss	dB	≥14
Gain Adjustable Range	dB	4(or as user's requirement)
Slope Adjustable Range	dB	3( or as user's requirement )

3.Company information:

Business Type:	Manufacturer, Trading Company
	Main Products:	Transmitter,Receiver,Amplifier,EDFA,DVB-C Set Top Box
	Location:	Shaanxi, China (Mainland)
	Year Established:	1999
	Number of Employees:	51 - 100 People
	Total Revenue:	USD7,860,989
	Main Markets:	Domestic Market, South Asia, South America
	Product Certifications:	Certificate of network access for broadcasting equipment,Certificate of network Access for Broadcasting Equipment,Certificate of network Access for Broadcasting Equipment,Certificate of network Access for Broadcasting Equipment,Certificate of network Access for Broadcasting Equipment,Certificate of network Access for Broadcasting Equipment,AOI,Golden customer,The best partner,3C,certificate of abyding by contract,Famous Brand,hi-tech new industrial enterprise

4.Our advantages:

1)Trade Capacity

Domestic Market : 81.30%

South Asia : 18.58%

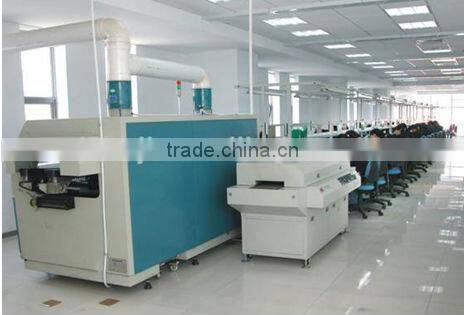

2)Production Capacity

Factory Size : Below 1,000 square meters

No. of Production Lines : 10

3)R&D Capacity

No. of R&D Staff : 100 People

Welcome to your inquiry and we can supply you best service.
