Home > Products > 1550nm EDFA > Outdoor 1550 nm Optical Amplifier 30db

Outdoor 1550 nm Optical Amplifier 30db

FOB Price

US$ 330 - 690 / Piece

1 Piece(Min. Order)

Port Shanghai/Shenzhen/Tianjin
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	JZ	Model Number	JZEDFA- dBIII
Type	Home Amplifier	Channels	Other
Place of Origin	Shaanxi, China

Product Description

Specifications

1.1550nm optical amplifier
2.Competitive price with mini casing
3.Froward frequency:47/87~860/1000MHz

1550 nm CATV Optical Amplifier price

1.Description:

CATV mini amplifier applies to catv trunk and distribution system.

--- Our JZS series of amplifier has two-way broadband design with dual-stage both forword and reverse.

---With back-stage power dual amplifier output.

---It has characteristics of wide working range and strong output.

2.Technical parameters :

Items	Unit	Technical parameter			Note
Items	Unit	Forward		Reverse	Note
Frequency range	MHz	47/87~862/1000	5~65		Custom other frequency segmentation ways
Rated gain	dB	36/32	20		reference frequency is 862MHz
Operating gain(two-way, AGC)	dB	30			Forward reference frequency point is 862, and reverse for 65MHz
Flatness in band	dB	±0.75	±0.75		Two-way is 0.75
Rated output level(OUT1)	dBuV	Branch108 distribution104	112		when testing, the output level is 110 dBuV, f1=65mhz, f2=63mhz,f3-57mhz
C/CTB	dB	≥ 62			Forward 79 way PAL-D analogue channel
C/CSO	dB	≥ 62	≥55
Noise figure	dB	≤8	≤10
Reflection loss	dB	≥16	≥16
Standard power voltage	V	A:60V B:220V			AC

size

230*123*40

Performance Characteristic

--Adopt international famous brand low-noise pump laser, low distortion, wide frequency band, high output optical power.

--Microprocessor automatic control circuit makes both pumps work at best state. Dependability and stability are better.

--Support one-way, two way, 3-way and 4-way output function.

--Front panel blue VFD display, shows various main work status parameters.

--Various output power for selection.

--RS-485 and RS-232 control interface can realize network management status monitor.

--19" 1U high-standard framework type installation.

--Accord to the standard Ethernet interface and RS-232 network management interface of IEEE802.3 10 Base-T.

--Support <GB/T 20030-2005 HFC Network Equipment Management System Criterion>, built-in responder, it is convenience for network management control.

--Total SMT structure, small size, low power consumption, high reliability.

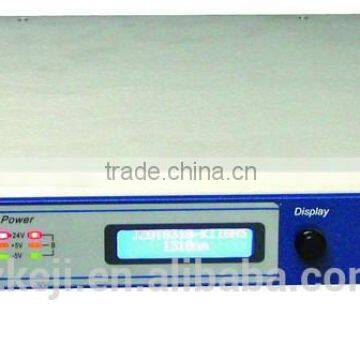

Products showing:

3.Company information:

Business Type:	Manufacturer, Trading Company
	Main Products:	Transmitter,Receiver,Amplifier,EDFA,DVB-C Set Top Box
	Location:	Shaanxi, China (Mainland)
	Year Established:	1999
	Number of Employees:	51 - 100 People
	Total Revenue:	USD7,860,989
	Main Markets:	Domestic Market, South Asia, South America
	Product Certifications:	Certificate of network access for broadcasting equipment,Certificate of network Access for Broadcasting Equipment,Certificate of network Access for Broadcasting Equipment,Certificate of network Access for Broadcasting Equipment,Certificate of network Access for Broadcasting Equipment,Certificate of network Access for Broadcasting Equipment,AOI,Golden customer,The best partner,3C,certificate of abyding by contract,Famous Brand,hi-tech new industrial enterprise

4.Our advantages:

1)Trade Capacity

Domestic Market : 81.30%

South Asia : 18.58%

2)Production Capacity

Factory Size : Below 1,000 square meters

No. of Production Lines : 5

3)R&D Capacity

No. of R&D Staff : 100 People
