Home > Products > Hongda Mixing machine and blenders > CH Series Horizontal Tank Type Mixer

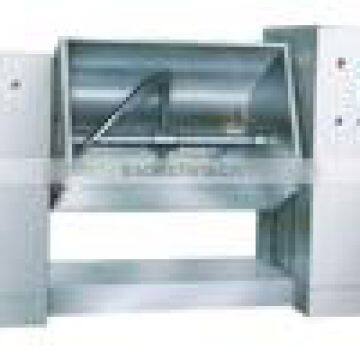

CH Series Horizontal Tank Type Mixer
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Hongda | |
| Model Number | CH-30~CH-1000 | Application | Powder | |
| Type | Other, Mixing Machine, Mixing Machine |
Product Description
Specifications
1. horizontal tank is made of sus3042. mixing of powdery or paste material
3. CE and ISO approved
Working principle :
S type agitating paddle is rotated, through mechanical driving, which pushes the material turn repeatedly and mix uniformly, operate with electrical control, it can set mixing time to realize automatic stop and electric discharge upon expiration, thus improving the mix quality of each batch of material and realizing the high homegeneous mixing.
Features:
1) The machine consists of single screw and type S blade
2) It is featured with large agitating scope, high mixing speed, no
dead angle
3) It is more suitable for mixing of materials with a great disparity in
specific weight and mixing proportion
Model | CH-150 | CH-200 | CH-300 | CH-400 | CH-500 | CH-600 |
Type of paddle | S Type single paddle | S Type single paddle | S Type single paddle | S Type single paddle | S Type single paddle | S Type single paddle |
Working volume | 90 | 140 | 180 | 250 | 300 | 380 |
Speed of agitating paddle | 24 | 24 | 24 | 24 | 24 | 24 |
Turning angle | <105 | <105 | <105 | <105 | <105 | <105 |
Agitation motor | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 |
Discharging motor | 0.75 | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 |
Overall dimention(mm) | 1685×600 | 1850×600 | 2160×700 | 2280×700 | 2450×700 | 2500×900 |
Weight | 650 | 720 | 750 | 780 | 820 | 850 |
Inner packing:
Plastic packing
Outer packing:
Wooden case
