Home > Products > Mill machine > Cement Ball Mill for Sale
Cement Ball Mill for Sale
- Shanghai port Qingdao port
- T/T PayPal
You May Like
Product Details
| Condition | New | Type | Ball Mill | |
| Motor Type | AC Motor | Power(W) | 110000 | |
| Capacity(t/h) | 3-6 | Place of Origin | Henan, China | |
| Brand Name | SD | Model Number | 1500*4500 | |
| Dimension(L*W*H) | General | Weight | 21t | |
| Certification | ISO9001 | Warranty | 12 MOTHS | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Cement Grinding Ball Mill1.Low Cosst
2.Energy Saving
3.High SpeedGold Ball Mill for Sale

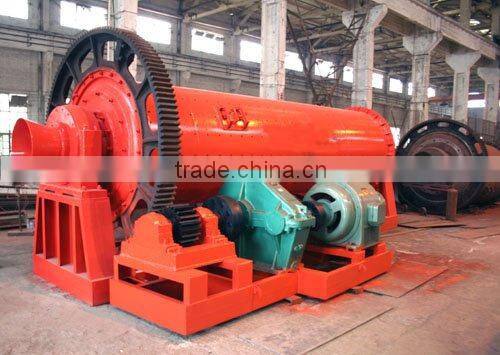

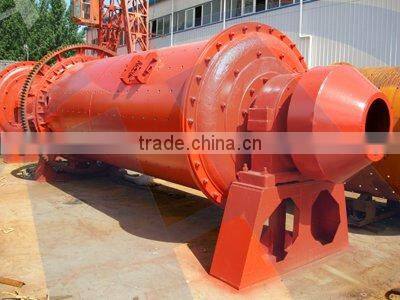

cement ball mill for sale
1.Brief Introduction of Cement Grinding Ball Mill :
Ball mill is a type of cylindrical device used to grind (or mix) materials like ores,chemicals, ceramic
raw materials and paints.Ball mill rotate around a horizontal axis, partially filled with the material to be ground plus the grinding medium. Different materials are used for media, including ceramic balls, flint pebbles and stainless steel balls.
2.Working principle of Cement Grinding Ball Mill:
Ball mill, a kind of horizontal drum-type rotating device, is a grate mill with external gear and double
bins. Materials shall be evenly charged through quill shaft in feeding device into the first bin, which hasstep or waved lining with steel balls in different specifications. Steel balls are taken to a certain heightby centrifugal force from drum rotation and then fall. Thus it will give a heavy blow to materials, playinga role of grinding. Materials after crushed in the first bin shall enter bin across single-layer diaphragm
into the second, which is provided with flat lining with steel balls, to go through further grinding.
Powder shall be discharged from discharging grating, ending the milling process.
3.Features of Cement Grinding Ball Mill:
Ball mill is mainly composed of charging and discharging, cyclone and rotation parts (like redactor,
minor rotation gear, motor, electric machine, etc). Hollow axis is made of steel parts with a lining
replicable. Major rotation gear, machined by rolling wheel of casting, is lined with wearing plate with
fine wear-resisting property. This machine runs stably and reliably.
4.Specifications of Cement Grinding Ball Mill:
Model | Speed of Bucker(r/min) | Ball Weight(t) | Input Size(mm) | Output Size(mm) | Capacity(t/h) | Power(Kw) | Weight(t) |
Φ900*1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.9 | 3.6 |
Φ900*3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
Φ1200*2400 | 32 | 3.8 | 25 | 0.075-0.6 | 1.5-4.8 | 45 | 12.5 |
Φ1200*3000 | 32 | 5 | 25 | 0.075-0.4 | 1.6-5 | 45 | 12.8 |
Φ1200*4500 | 32 | 7 | 25 | 0.075-0.4 | 1.6-5.8 | 55 | 13.8 |
Φ1500*3000 | 27 | 8 | 25 | 0.075-0.4 | 2-5 | 90 | 17 |
Φ1500*4500 | 27 | 14 | 25 | 0.075-0.4 | 3-6 | 110 | 21 |
Φ1500*5700 | 27 | 15 | 25 | 0.075-0.4 | 3.5-6 | 132 | 24.7 |
Φ1830*6400 | 24 | 23 | 25 | 0.075-0.4 | 6.5-15 | 210 | 34 |
Φ1830*7000 | 24 | 25 | 25 | 0.075-0.4 | 7.5-17 | 245 | 36 |
Φ2200*5500 | 21 | 30 | 25 | 0.075-0.4 | 10-22 | 370 | 48.5 |
Φ2200*6500 | 21 | 30 | 25 | 0.075-0.4 | 14-26 | 380 | 52.8 |
Φ2200*7500 | 21 | 33 | 25 | 0.075-0.4 | 16-29 | 475 | 56 |

Why Choose Us
1. We are not dealer, we are direct manufacturer.
1)Henan Senda Heavy Industry Machine Co., Ltd. is located in ZhengZhou City,HeNan
Province of China,which established in 2004, is an international heavy enterprise which expert
on manufacturer,R&D and sales of stone crushers,power making machine,ore beneficiation
machines.
2)we have achieved ISO9001:2008 certificate and obtained import and export right at the
beginning of our foundation. is the member of China heavy industry Machine Association,is the company which fixed on research and development,production and sales.We have a team that
has reach practical experience and innovative ideas in research,development, and production.
3)Our products are selling to Russia,the Middle East,Southeast Asia,Africa,and other countries
and regions.
2. Our mission
1)Saving the purchasing cost of our customer;
2)Shorten customer's Business Cycle.
3)Help our customer's business establish their reliability.
3. Quality
We take "quality first and customers first" as our tenet.So we take following measures to ensure product best.
1)Hire or cooperate with industry experts of the colleges and universities to build
2)Establish Technical&service team to solve any problems may occur at any time.
3)Found evaluation system for every suppliers,and evaluate them every quarter.
Projects:
Ready to your place:
1.Pre-sale services:
Act as a good adviser and assistant of clients; enable them to get rich and generous returns on
their investment
(1) Select equipment model;
(2) Design and manufacture products according to clients’ special requirement;
(3) Train technical personnel for clients.
2.Services during the sale:
Respect clients; devote ourselves to improving the total value of clients.
(1)Pre-check and accept products ahead of delivery;
(2)help clients to draft solving plans.
3. After-sale services:
Provide considerate services to minimize clients’ worries.
(1) Assist clients to prepare for the first construction scheme;
(2) Install and debug the equipment;
(3) Train the first-line operators on site;
(4) Examine the equipment regularly;
(5)Take initiative to eliminate the troubles rapidly at site;
(6) Distribute the guarantee fittings door-to-door;
(7)provide perfect service;
(8)Provide technical exchanging;
(9)Provide maintenance for big items.
Welcome to visit our factory !Welcome to inquiry !
