Home > Products > Parts of machine > Hot Sale CW5200 Chiller for Double Laser Tube
Hot Sale CW5200 Chiller for Double Laser Tube
- QINGDAO
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | A&S | |
| Model Number | CW5200 |
Product Description

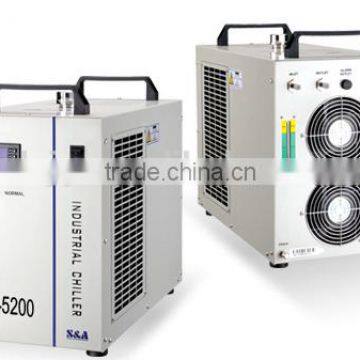

hot sale CW5200 chiller for double laser tube
Voltage | 220V |
Frequency | 50Hz |
Current | 2.4~3.1A |
Compressor power | 0.52KW |
0.71HP | |
Refrigeration capacity | 5084Btu/h |
1.49KW | |
1281Kcal/h | |
Refrigerant | R-22 / R-134a / R-410a |
Refrigerant charge | 360g |
Precision | ±0.3℃ |
Reducer | Capillary |
Protection | Overcurrent protection for compressor, flow alarm, over temperature alarm |
Pump power | 0.05KW |
Tank capacity | 6L |
Inlet and outlet | External Ø 10mm brass connector |
Max. lift | 12M |
Max. flow | 13L/min |
N.W | 26 Kgs |
G.W | 29 Kgs |
Dimension | 58 x 29 x 47 cm (L x W x H) |
Package dimension | 70 x 43 x 58 cm (L x W x H) |
Features
1. 1400W cooling capacity; optional environmental refrigerant;
2. Compact size, long working life and simple operation;
3. ±0.3℃ precisely temperature control;
4. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
6. Multiple power specifications; CE approval;RoHS approval;
7. Optional heater and water filter.
Specification
One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch to appropriate operating temperature.
Carton for one set, plywood box for quantity
