16010 fda approved double heads low cost plastic laser cutting machine
- Qingdao Port
- T/T Credit Card PayPal
You May Like
-
Made in china 2000*1000mm fda approved low cost plastic laser cutting machine
-
600*400mm wedding invitation card small laser cutting machine price
-
Hot sale 1300*2500mm 150W flatbed stainless steel laser cutting machine
-
Hot double heads acrylic laser cutting machine 1390
-
FDA approved small scale metal laser cutting machine 1390
-
High efficiency fda approved laser cutting machine 1390
Product Details
| Condition | New | Laser Type | CO2 | |
| Applicable Material | Acrylic, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood | Cutting Thickness | 0-20mm | |
| Cutting Area | 1600*1000mm | Cutting Speed | 0-36000mm/min | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Control Software | Lasercut | Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | |
| Place of Origin | Shandong, China | Brand Name | DX | |
| Model Number | DX-1610 | Certification | CCC, CE, GS, ISO, SGS, UL, Other, CCC, CE, GS, ISO, SGS, UL, FDA | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

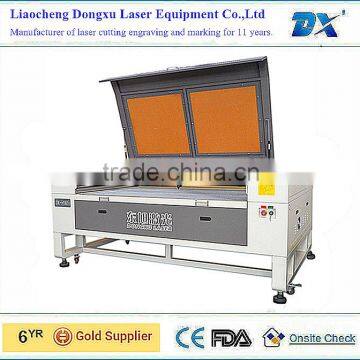

16010 fda approved double heads low cost plastic laser cutting machine
| Machine Description | DX-1610 low cost plastic laser cutting machine |
| Laser-type | Hermetic and detached CO2 glass laser tube |
| Laser-power | 80W(100W. 120W. 150W as options ) |
| Gross Power | no more than 3,000W |
| Working area (L*W) | 63" * 39.4" / 1600cm*1000 cm |
| Worktable type | knife shape or honeycomb bedplate |
| Max Engraving speed | 40"/s / 1000mm/s |
| Max Cutting speed | 24"/s / 600mm/s |
| Power supply | 220V/110 ,50HZ/60HZ |
| Driving system | stepper motor, optional servo motor |
| Cooling mode | Water-cooling |
| Precision Repeatability | ±0.01 mm |
| Minimum Character | Chinese character 2.0 mm, christcross-row 1.0 mm |
| Whole machine size (L*W*H) | 87.4"x58.3"x40.6" / 2220x1480x1030 mm |
Configuration
Actual Filming In The Factory
Details Of The Configuration
The Accessories Of The Machine
If the clients want samples, clients just need sent their material to us and we will make the free samples to our clients, the clients just need pay the freight.
1.Our outer packing is plywood box.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
1.18 months guarantee for whole machine except of laser tube and lens.
2.12 hours service on Internet and Telephone, free instructions and problem solving.
3. Free online training provides. We could dispatch engineer overseas, the buyer should pay the fly ticket and accommodation.
My Office
My Factory
My Export Experience
Certifications
If you are interest in our products or our services, please contact us, you will get the best reliable products in reasonable prices.
