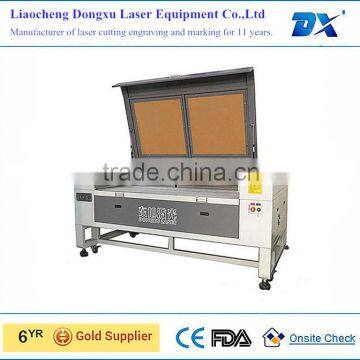

Made in china 1800*1000mm CE approved petticoat laser cutting machine
- Qingdao Port
- T/T Credit Card
You May Like
-
Made in china 2000*1000mm low cost petticoat laser cutting machine
-
1300*2500 mm flatbed large area petticoat laser cutting machine
-
1600*3000mm large area auto feeding petticoat laser cutting machine
-
16010 double heads low cost laser wood burning machine
-
1300*900mm 150W mix laser cutting machine for sale
-
16010 double heads low cost laser die making machine
Product Details
| Condition | New | Laser Type | CO2 | |
| Applicable Material | Acrylic, Leather, MDF, Paper, Plywood, Rubber, Wood | Cutting Thickness | 0-20mm | |
| Cutting Area | 1800*1000 mm | Cutting Speed | 0-36000mm/min | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Control Software | Lasercut | Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | |
| Place of Origin | Shandong, China | Brand Name | DX | |
| Model Number | DX-1810 | Certification | CE, Other, CE, FDA | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Made in china 1800*1000mm CE approved petticoat laser cutting machine
| Machine Description | DX-1810 petticoat laser cutting machine |
| Laser-type | Hermetic and detached CO2 glass laser tube |
| Laser-power | 80W (100W, 120W, 150W as options ) |
| Power Adjustment | 10-100% controlling, adjusting by software |
| Working area (L*W) | 70.9" * 39.4" / 1800cm*1000 cm |
| Worktable type | knife shape or honeycomb bedplate |
| Max Engraving speed | 40"/s / 1000mm/s |
| Max Cutting speed | 24"/s / 600mm/s |
| Power supply | 220V±10% /50HZ , 110V±10%//60HZ |
| Working temperature | 5°C-45°C |
| Driving system | stepper motor, optional servo motor |
| Cooling mode | Water-cooling and protection system |
| Gross Power | no more than 3,000W |
| Precision Repeatability | ±0.01 mm |
| Minimum Character | Chinese character 2.0 mm, christcross-row 1.0 mm |
| Whole machine size (L*W*H) | 91.5"x56.7"x40.6 / 2325x1440x1030 mm |
Configuration
Details Of The Configuration
The Accessories Of The Machine
If the clients want samples, clients just need sent their material to us and we will make the free samples to our clients, the clients just need pay the freight.
1.Our outer packing is plywood box.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
1.18 months guarantee for whole machine except of laser tube and lens.
2.12 hours service on Internet and Telephone, free instructions and problem solving.
3. Free online training provides. We could dispatch engineer overseas, the buyer should pay the fly ticket and accommodation.
