Home > Products > UV Flatbed Printer > UV Flatbed Printer UVB-SK2514
UV Flatbed Printer UVB-SK2514
- 1000 Set / Sets per Month
- Dalian
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Plate Type | Flatbed Printer | |
| Place of Origin | Liaoning, China | Brand Name | Zhongye | |
| Model Number | UV | Usage | Other, KT board;PVC board;Plexiglass;ceramic;metal;leather and so on | |
| Automatic Grade | Automatic | Dimensions(L*W*H) | 2.5m*1.4m |
Product Description

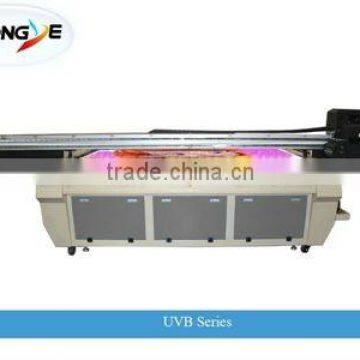

ZhongYe UV series UV flatbed printer adopts Epson or Japanese Spt series print heads, equipped with double servo drivers(Japanese Panasonic or Fuji servo motor and motor driver), . It is specialized in printing sheet to sheet. Media donot move during printing, the print head carriage move left and right and the beam move front and back to finish printing. Because the media donot move during printing, this series UV printers can print heavy sheet materials. Print height reach 10cm maximumIt replaces the traditional screen printing technology, and brings to customers the individualized, small-lot, various, and multicolored products, with the output features of speediness, high efficiency and flexibility.
The Main Technology
| Name: | UVB-SK2514 |
| Class: | UVB series |
| Print technology: | Drop-on-demand Piezo electric |
| Printhead: | 4/5/7/10/12/14(SPT255/12pl) |
| Print size: | 2.50m*1.25m |
| Print height: | 10cm |
| Resolution: | 1440dpi max |
| Speed: | 2pass 24sqm/h ; 4pass 16sqm/h ; 6pass 8sqm/h(10/12/14 heads, double speed) |
| Locating mode: | Raster /servo |
| Color: | CMYK W LC LM |
| Media width: | 2.50m*1.40m |
| Media handle: | Sheet to sheet |
| Media types: | KT board;PVC board;Plexiglass board;glass board;ceramic board,tile;metal board;leather and all the roll to roll material like flex banner,mesh,one way vision,vinyl etc |
| Drying system: | UV lamp |
| File format: | TIFF,Postscript 3,JPEG,EPS,PDF |
| Working process: | Printmon software for windows xp |
| Rip: | Photoprint /maintop |
| Power supply: | 50hz/60hz 220v(10%)20A |
| Operation enviroment: | (Temperature )18-26(Humidity )40%-70% |
| Dimension: | 3.8m*1.6m*1.4m |
| Weight: | 1000KG |
