Home > Products > Printing equipment > Best resolution E1800(4colors x2) eco solvent Printer

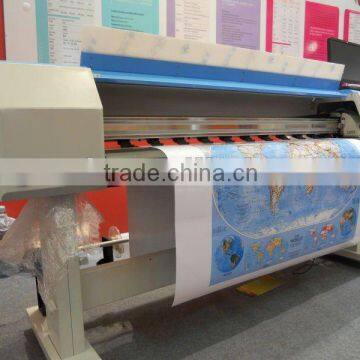

Best resolution E1800(4colors x2) eco solvent Printer
- 200 Set / Sets per Month
- Dalian
- T/T
You May Like
Product Details
| Condition | New | Plate Type | Other, large format solvent printing | |
| Place of Origin | Liaoning, China | Brand Name | Zhongye | |
| Model Number | E1800 | Usage | Other, vinyl sheet and carpet paper,flex banner, pvc, mesh fabrics.etc advert | |
| Automatic Grade | Automatic | Gross Power | 50hz/60hz 220v(10%)20A | |
| Dimensions(L*W*H) | 2.8m*0.7m*1.4m |
Product Description
Specifications
1.8m eco solvent printer1, 4/6(spt510/255) print head
2, panasonic motor equipped
3, real 1440dpi
eco solvent printer
| Name | E1800(4COLORS x 2) |
| Class | ZY-SK series |
| Print technology | Drop-on-demand Piezo electric |
| Printhead | 4/6(spt510/255) |
| Print width | 1.8M |
| Resolution | 1440dpi max |
| Speed | 2pass 24m/h ; 4pass 16m/h ; 6pass 10m/h |
| Locating mode | Raster /servo |
| Color | CMYK LC LM |
| Media width | 1.8M |
| Media handl | Roll to roll |
| Media types | Flex banner,vinyl sheet,one way vision,mesh,PVC fabrics,paper,etc |
| Ink | Solvent/two-year outdoor lifetime |
| File format | TIFF,JPEG,Postscript 3,EPS,PDF |
| Working process | Printmon software for windows xp |
| Rip | Photoprint /maintop |
| Power supply | 50hz/60hz 220v(10%)20A |
| Operation environmeng | (Tempperature )18-26(Humidity )40%-70% |
| Dimesion | 2.8m*0.7m*1.4m |
| Weight | 350Kg/450Kg |
ZY SERIES LARGE FORMAT SOLVENT PRINTER: Adopting SPT printheads. Locating mode is combined with DC motor and raster. This kind of printer is widely used for outdoor printing.It will be your first choice of High-speed & High-resolution printer for its 1440 DPI resolution and 90m2/h speed.
Above printing speed is at the basis of 510(180x180 dpi) printheads or Xaar 500 (180x180 dpi) printheads .The printer also can adopt 255 printheads but the printing speed will decrease half.
Configuration below is according to different models:
Motor: Japanese Panasonic, Fuji AC servo motor;
Rail:Japanese THK,Tawinese HWIN;
Heating system:front&back double heating;
Feed-in&take-up system:IR controlled auto feed-in&take-up system;
Printhead cleaning system: positive pressure, vaccum
Ink system:German KNF ink supply system,Japanese negative pressure system.
LIAONING ZHONGYE (ZY) TECHNOLOGY AND INDUSTRY DEVELOPMENT CO., LTD.
162 Huishan St. Huishan Hi-Tech Development Zone Shenyang Liaoning China 110164
Tel: 0086 24 89789511-8015 Fax: 0086 24 89789357
Contact person: eric lee Skype: eric.lee1103 MSN: eric-zhongyetech at
