Home > Products > Printing equipment > 2.0m Print Width Large Format Digital Printer

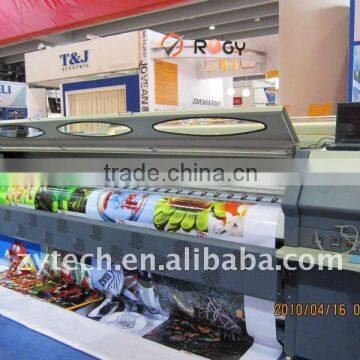

2.0m Print Width Large Format Digital Printer
- Dalian
- T/T
You May Like
Product Details
| Condition | New | Plate Type | Other, large format solvent printing | |
| Place of Origin | Liaoning, China | Brand Name | Zhongye | |
| Model Number | ZY2000 | Usage | Other, vinyl sheet and carpet paper,flex banner, pvc, mesh fabrics.etc advert | |
| Automatic Grade | Automatic | Voltage | 220v | |
| Gross Power | 50hz/60hz 220v(10%)20A | Dimensions(L*W*H) | 3.4m*0.8m*1.5m | |
| Weight | 500KG | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
2.0m large format solvent printer1, 4/8/12/16 (xaar128/40) print head
2, panasonic motor equipped
3, real 1440dpi
large format digital printer
| Name | 2000(6COLORS) |
| Class | ZY-SK series |
| Print technology | Drop-on-demand Piezo electric |
| Printhead | 4/8/12/16 (xaar128/40) |
| Print width | 2.0M |
| Resolution | 720dpi max |
| Spee | 2pass 45m/h;4pass 24m/h;6pass 12m/h |
| Locating mode | Raster /servo |
| Color | CMYK LC LM |
| Media width | 2.0M |
| Media handl | Roll to roll |
| Media types | Vinyl sheet and carpet paper,flex banner pvc mesh fabrics |
| Ink | Solvent/two-year outdoor life |
| File format | TIFF,JPEG,Postscript 3,EPS,PDF |
| Working process | Printmon software for windows xp |
| Rip | Photoprint /maintop |
| Power supply | 50hz/60hz 220v(10%)20A |
| Operation environmeng | (Tempperature )18-26(Humidity )40%-70% |
| Dimesion | 3.4m*0.8m*1.5m |
| Weight | 500Kg/600Kg |
ZhongYe XAAR series Large Format Solvent Printer: adopting xaar128/40 print head, DC motor&raster locating mode, cost-effective and in high resolution up to 720dpi.The first choice for common customers newly to printing industry.
Printing speed above is based on 16pcs of xaar128 printhead and 180*180dpi.
Configuration below is according to different models:
Motor: Japanese Panasonic, Fuji AC servo motor;
Rail:Japanese THK,Tawinese HWIN;
Heating system:front&back double heating;
Feed-in&take-up system:IR controlled auto feed-in&take-up system;
Printhead cleaning system: positive pressure, vaccum
Ink system:German KNF ink supply system,Japanese negative pressure system.
LIAONING ZHONGYE (ZY) TECHNOLOGY AND INDUSTRY DEVELOPMENT CO., LTD.
162 Huishan St. Huishan Hi-Tech Development Zone Shenyang Liaoning China 110164
Tel: 0086 24 89789511-8015 Fax: 0086 24 89789357
Contact person: eric lee Skype: eric.lee1103 MSN: eric-zhongyetech at
