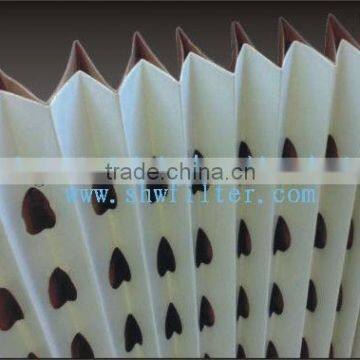

SHW high quality overspray andreae paint paper

Specifications

Speciality:
(1) Common Appliances: It is widely used in various types of green spray cabinets, wood, metal, furniture spray, car spray, as well as other industrial spraying.
(2) Features: With Wrinkled Tsubaki structure, it can absorb ultra-wide over spray effectively, forcing the over jet stream flow to   change direction several times and the particles heavier than the air will adhere to the walls while not be taken away with the air. Over-spray materials fill in the bottom of the fold until they completely block off the filter, then you have to replace it. V type-depth bearer, the filter can become more effective accompanying the saturation which is exactly opposite to glass fiber filters (as for glass fiber filters, the filtration efficiency will decrease accompanying the saturation).

(3) The most appropriate inertial separation avoids the paint bouncing back. The front and the back hole can self- support and self-offset to ensure smooth airflow and stability. According to the type, features and solid content state of paint, the filtration efficiency can be up to 98%.
(4) Features: Low air resistance, high performance, low cost
                     Positive Wind Speed: 1.0m / s
                     Large adsorption capacity, up to 15Kg / m², 5-6 times more than other filter materials
                     All types of paint cabinets can be easily converted to use it.

                     Standard size: 10 meters in length, 0.75/0.9/1.0 m in width
                     Filter media: Imported environmental rigid kraft paper board.
