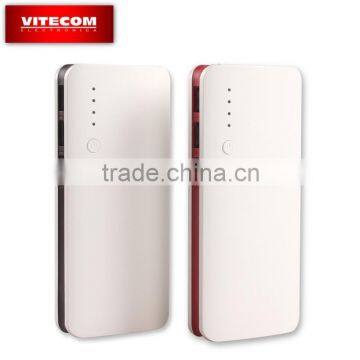

power bank charge 5V/1A 5V/2.1A new fashion

FOB Price

USD $5 - $12 / Piece

100 Pieces(Min.Order)

Port ningbo/HK
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	KETRON
Model Number	KQS--13000	Dimension	1406322.5mm
Weight	277g	Capacity	12000 mAh--15600mah, 12000 mAh--15600mah
Outport	5V/1A 5V/2.1A	Input	5V/1A, 5V/1A
Socket Type	unversal usb

Product Description

Specifications

power bank charge 5V/1A 5V/2.1A new fashion
1.High capacity and high compatible
2.Fast charging efficiey

power bank charge 5V/1A 5V/2.1A new fashion

Our advantages:

1) We are factory: Good price & fast delivery.

2) We only do private tooling, A-grade polymer batteries, high quality materials & exquisite details.

3) Reliable quality with patent, CE, RoHS, FCC, C-Tick certificates.

4) OEM/ODM, customers design is welcome.

5) Excellent service, fast reply.

6) Sample order or trail order for test is acceptable.

Brand	KETRON	MOQ	1 piece
Model	KQS-13000	Devices Supported	Mobile phones, MP3 players, MP4 players, PDAs, digital cameras, handheld game consoles, Bluetooth devices and so on.
Feature	big capacity ,dual usb	Attached Connectors	Micro Mini USB
Capacity	12000-15600mah	Lead time	1-3 days for sample order ,7-12 days for bulk order
Material	ABS	Warranty	12 months
Rated Input	5V/1A	Operating Temperature	(-20°C-50°C )
Rated Output	5V/1A 5V/2.1A	Storage Temperature	(-20°C-50°C )
Weight	277g	Over Voltage Protection	YES
Color	many colors, customized	Over Current Protection	YES
Dimension	1406322.5mm	Short Circuit Protection	YES
Cell Type	Li-ion	Over Charge Protection	YES
Packing	PET box/gift box/customized	Over Discharg Protection	YES
Power Efficiency	80%-90%	Trade term	30% deposit ,balance after copy of bill of lading paper
Circle Life	Over 500 times	Tax	To lower tax we can mark a lower unit price
Recharge Cycles	> 500 times	OEM/ODM	Accept
Certification	CE, FCC, RoHS,REACH,MSDS	UPS	YES
Self-Charging Time	2-3 hours	FEDEX	YES
RMA	0.3%-0.5%	AIR-SHIPMENT	YES
Battery Type	Rechargeable 18650	SEA-SHIPMENT	YES
Why choose us?	1. Long-term cooperation strategy for trustable business;
	2. Professional producer and supplier since 1990;
	3. digital battery since1995 ,power bank charger since 2012;
	4. Strict quality control for stable quality: 3-time quality test;
	5. Prompt delivery: 1-3 days only, suitable for urgent sourcing;
	6. Great experience for OEM/ODM design and packaging orders;
	7. We highly cherish our high reputation

Standard Cell

Standard Cell Technical Specification Summary
Nominal Voltage		3.7V	Cell Voltage is between 3.6v--3.9v when shipped
Capacity range	100mah-1,999mah
charge	MAX charge voltage	4.2	Cell Voltage is between 3.6v--3.9v when shipped
	MAX charge current	1.0C
Charging method	Constant current/voltage		Standard charge:0.2c @4.2v
	Constant current/voltage		Standard charge:0.5c @4.2v
Discharge	Min Discharge voltage	2.75
	Max Discharge Current	1.0Cmin	Cells can be manufactured to discharge rates of up to 2.0c ,see high discharge series cells for more information
Self Discharge	Residual Capacity	>97%	After standard charging,stored at 25 ℃ ±5 ℃ for 30 days,then measured @0.2C/2.75V
Operating Temp(C)	Discharge	-10℃ +60℃	Higher and Lower temperatures are achievable to order
	charge	0℃ +45℃
Storage Temp (C)		-10℃ +45℃
Cycle Life (Number of cycles)	Minimum	300	One cycle relates to one charge period to 0.2C/4.2V-then one discharge period to 0.2C/2.75V.the cycle life rating is when the discharge capacity is at 80% of the rated capacity
	Typical	500

Inspection Protocol

INSPECTION PROTOCOL AND QA FOR LITHIUM BATTERY

No.	unit	min	type	max	remark
charge	℃	0	25	45
discharge	℃	-20	25	65
storage	℃	-20	25	45	1 month
	℃	-20	25	35	6 months

Before storage, batteries should be charged to 40%-65% of full capacity

Characteristics testing:

item	test method	Requirements
Charging/Cut-off Voltage	4.20±0.01V
Discharge/Cut-off Voltage	3.00±0.01V
Standard Charge	Charge the battery at constant current of 0.2C to reach 4.2V. Then charge the battery at constant 4.2V voltage until , the charging current decreasing to 0.01C.	Charging time≤8h
Standard Discharge	After the standard charging,rest for 1 hour then discharge, to 3.0V 0.2c
Rate Discharge	After the standard charging,rest for 1 hour then discharge, to 3.0V 0.5C	Discharging time≥102Min
High Temperature Characteristics	Fully charging, store them at (55±2)℃ for 2 hours, then discharge to 3.0V @0.5C	Discharging time ≥102 Min , No transform, no explosion,no fire,no leakage
Low Temperature Characteristics	Full charging, store them at (-10±2)℃ for 16-24 hours, then discharge to 3.0V @0.2C	Discharging time ≥255 Min, No transform, no explosion,no fire,no leakage
Capacity retention	Fully charging, store them at (20±2)℃ for 28 days, then discharge to 3.0V 0.2C	Discharging time ≥255 Min, No transform, no explosion,no fire,no leakage
Cycle Life 25℃	Charge the battery @0.5C to reach 4.2V. Then charge the, battery at constant 4.2V voltage until the charging current, decreasing to 0.01C. Rest for 10 min. discharge to 3.0V 0.5C and rest for 10 min. Continue the charge/discharge cycles until discharge capacity lower than 80% of rated capacity	Cycle life ≥500
Storage	Charge the battery to 40%~65% of its rated capacity using, standard charging mode, then keep it in an 20℃±5℃, humidity 45%~85% room for 12 months. Discharge it 0.2C until voltage down to 3.0V	Discharge time ≥240Min

Environment Characteristics:

Item	Testing Method	Requirements
Hot & humidity testing	Full charging, store it at 40±2℃ with 90%~95RH% for 48 hours. Then put the battery at room temperature 20±2℃ for 2 hours. Then discharge to 3.0V 0.5C	Discharging time ≥72 Min no transform, No erosion, no explosion,no fire,no leakage
Vibration	After Standard Charging,fixed the battery to vibration table,then subjected to vibration test for 30 minutes per axis of XYZ axes	No explosion,no fire, no leakage. Voltage≥3.7V.
Shock test	After Standard Charging,test condition Acceleration :100m/s2 Crash time per min: 40-80 times, Pulse lasting time : 16ms , Shock times : 1000±10times	No explosion, no fire, no leakage. Voltage≥3.7V.
Drop Test	After standard charging , drop the battery from 100cm, height onto a 18mm~20mm thick hardwood. Two sides of X,Y,Z directions each (total 6 times) After the drop test, discharge the battery 0.5C to 3.0V Then charge it 0.5C to full capacity. Continue the test within 3 times the battery should reach the target once	Discharging time ≥102 Min No erosion, no explosion,no fire,no leakage

Safety Performance

Overcharge protection test	After standard charging. Apply a 7.4V stable Voltage and 1C stable current to the battery for 8 hours	No fire, no explosion
Over discharge protection test	After discharged to the cut-off voltage,the battery shall be subjected to a short-circuit condition with a load of resistance less than 30Ω for 24 hours	No fire, no explosion
Short circuiting protection test	After standard charging,the battery shall be subjected to a short-circuit condition with a wire of resistance less than 100mΩ for 1 hour. Cut off the circuit, Charge the battery with constant current at 1.0C for 5s	No fire, no explosion, Voltage≥3.7V
Impact Test	After standard charge,Place the battery on a flat surface. A 9.1 kg article is to be dropped from a height of 100cm onto the sample. The battery is allowed to transform	No fire, no explosion
Heating Test	After standard charging,a battery is to be heated in an oven convection or circulating air oven. The temperature of the oven is to be raised at a rate of 5±2℃/min to a temperature of 130±2℃ and last for 30 minutes.	No fire, no explosion
Over charge	After standard charging, put the battery in fume hood. Add constant voltage & current 4.8V 3C to the battery. Charging it until the battery reaches 4.8V, charging current decreases to almost 0A. Record the temperature curve of the battery. When the battery temperature decreases to about 10℃ lower after reaching the peak temperature. End the test. This test is performed without PCM	No fire, no explosion
Short circuiting test	After standard charging, put the battery in fume hood. Connect the Negative Pole and Positive pole directly. (the wire’s resistance should below 50mΩ. Record the battery’s temperature curve during the test. When the battery temperature decreases to about 10℃ lower after reaching the peak temperature. End the test. This test is performed without PCM	No fire, no explosion

Factory Photos 2014

Ketron Trade Show

Ketron New Product

Our Services

K-1; From design/ sketch to shipment/ delivery, one-stop service offered;

K-2: On-time delivery:we offer 7 days for production or 2-5 days when you asking urgent;

K-3: Efficient feedback:any questions or needing, you'll be replied within 24hours no matter we can or cannot;

K-4: warranty:you're guarantted to buy from us, any defects will be replaced or funds returned;

K-5: Win-Win transaction:our professional customer representatives dedicated to make each potential client to experience an enjoyable buying trip.

Production Machinery:
Machine Name	Brand & Model No.	Quantity	Number of Year(s) Used	Condition
SMT Machine 1	JUKI KE-2010M	2	7	Acceptable
SMT Machine 2	JUKI FX-1	2	5	Acceptable
Semi-automatic Printing Machine	EW-3288	2	3	Acceptable
Reflow Soldering Machine	EW-WP8800-LF	1	3	Acceptable
Ultrasonic Welding Machine	JX-2015A	1	4	Acceptable
Silk Screen Machine	GF-100	4	4	Acceptable
Color Printing Machine	STYLUS PRO 4880C	1	3	Acceptable
USB Duplicator	Vinpower Digital 1/15	1	2	Acceptable
ACF Bonding M/C	SK-ACF	3	1
