Home > Products > ROTARY PRINTING SCREEN > Textile cylinder screen
Textile cylinder screen
USD $15 - $50
/ Piece
100 Pieces(Min.Order)
- QINGDAO
- T/T D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | SINOEURO | |
| Model Number | 1980*918*125M | Use | Textile Dyeing Machinery | |
| Type | Rotary Screen |
Product Description
Specifications
Textile cylinder screenmore tought and tensile
hight strenght long lifre
good symmetrical
Textile cylinder screen
APPLICATION
MESH | SUGGESTED LINE THICKNESS | APPLICABLE PRINTING VARIETY&CHARACTERISTICS |
| 60-80 | 0.3MM | OSMOTIC PRINTING NORMAL CONTOUR |
| 100 | 0.25MM | SURFACE PRITING ,FINE COLOR AND FINE DESIGN OF FABRIC |
| 125 | 0.20MM | SURFACE PRITING OSMOTIC PRINTING ,RESISIT PRINTNG DEEP AND SHALLOW TWO TONES, ETC |
| 155 | 0.16MM | RESIST PRINTING, HALF-TONE PRINTING &GEOMETRIC FIGURE WITH LEVEL &VERTICAL LINES, ETC |
SPECIFICATION:
| MESH | REPEAT(MM) | LENGTH(MM) | THICKNESS (MM) | OPEN AREA(%) |
| 60 | 640/820/914/1018/1450/1680 | 1410-4100 | 0.12 | 16-18% |
| 80 | 640/820/914/1018/1450/1680 | 1410-4100 | 0.105 | 16-18% |
| 100 | 640/820/914/1018/1450/1680 | 1410-4100 | 0.105 | 14-16% |
| 125 | 640/820/914/1018/1450/1680 | 1410-4100 | 0.100 | 13-15% |
| 155 | 640/820/914/1018/1450/1680 | 1410-4100 | 0.100 | 12-14% |
More tough and tensile, safely operation and multiple use
orderliness and accurate screen caves, good dye output and osmotic function
Good symmetrical, good conglutination function of photosensitive medicament
higherstrength, longer life sceen

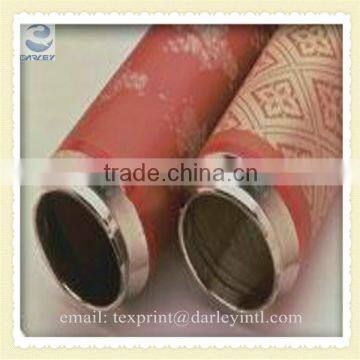

Product picture:
Factory View:
Application:
PACKING:
Instruction:
Focus on textile printing articles more than 10 years, we would offer you the best proudcts with most professional service. Any interested in, pls contact with us freely.
