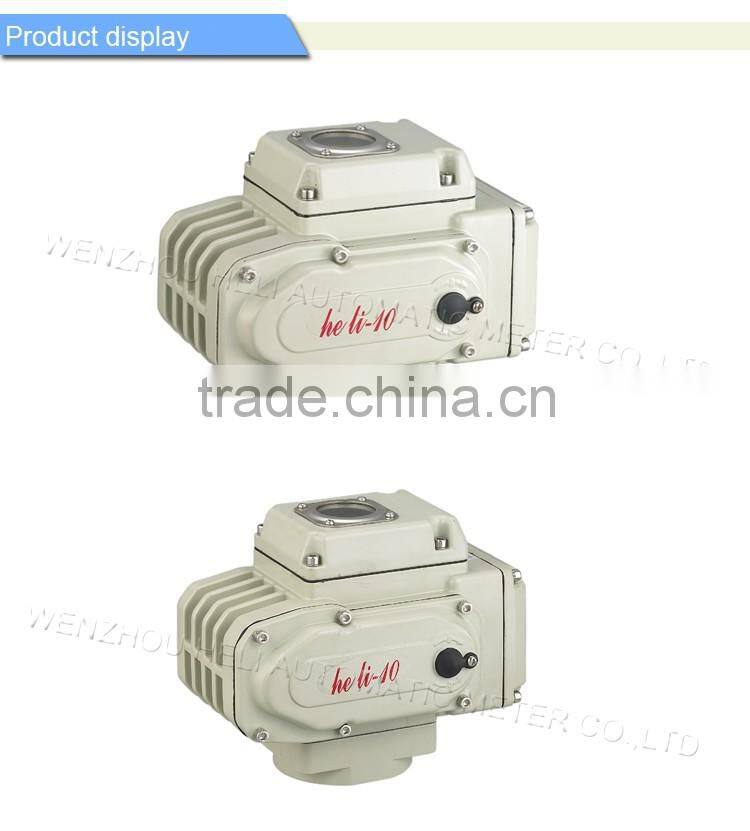

12VDC Modulating Type Electric Valve Actuator With 4~20mA
- Ningbo Shanghai
You May Like
Product Details
| Standard or Nonstandard | Standard | Power | Other, Electromotion | |
| Material | Alloy | Temperature of Media | Normal Temperature | |
| Media | Water | Place of Origin | China | |
| Model Number | HL-10 | Brand Name | HELI | |
| Application | General |
Product Description

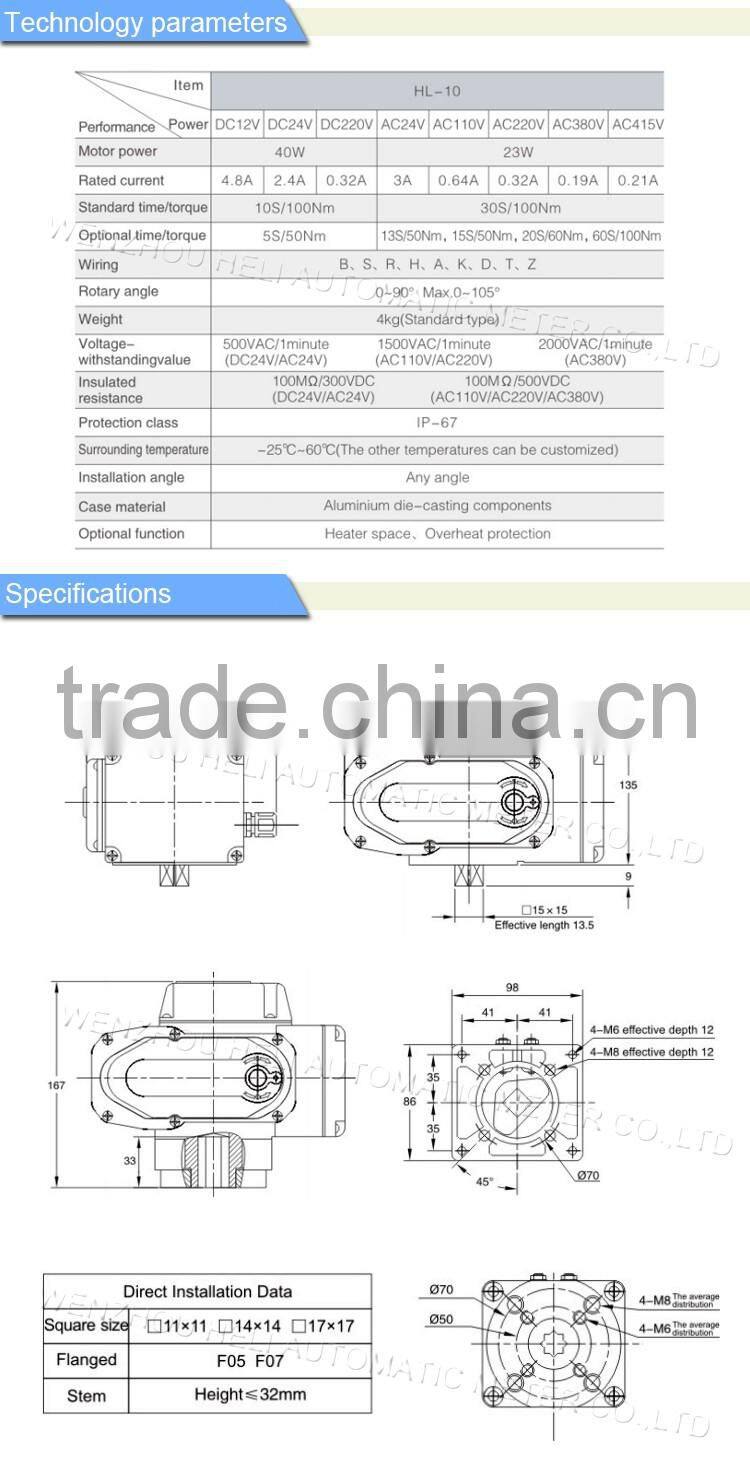

Model
| HL-10 | ||||||||
Power | DC12V | DC24V | DC220V | AC24V | AC110V | AC220V | AC380V | ||
Motor power | 40W,23W | ||||||||
Rated current | 4.8A | 2.4A | 0.32A | 3A | 0.64A | 0.24A | 0.19A | ||
Output torque | 100Nm | 50Nm/60Nm/100Nm | |||||||
Action time | 10S | 13S/15S/20S/30S | |||||||

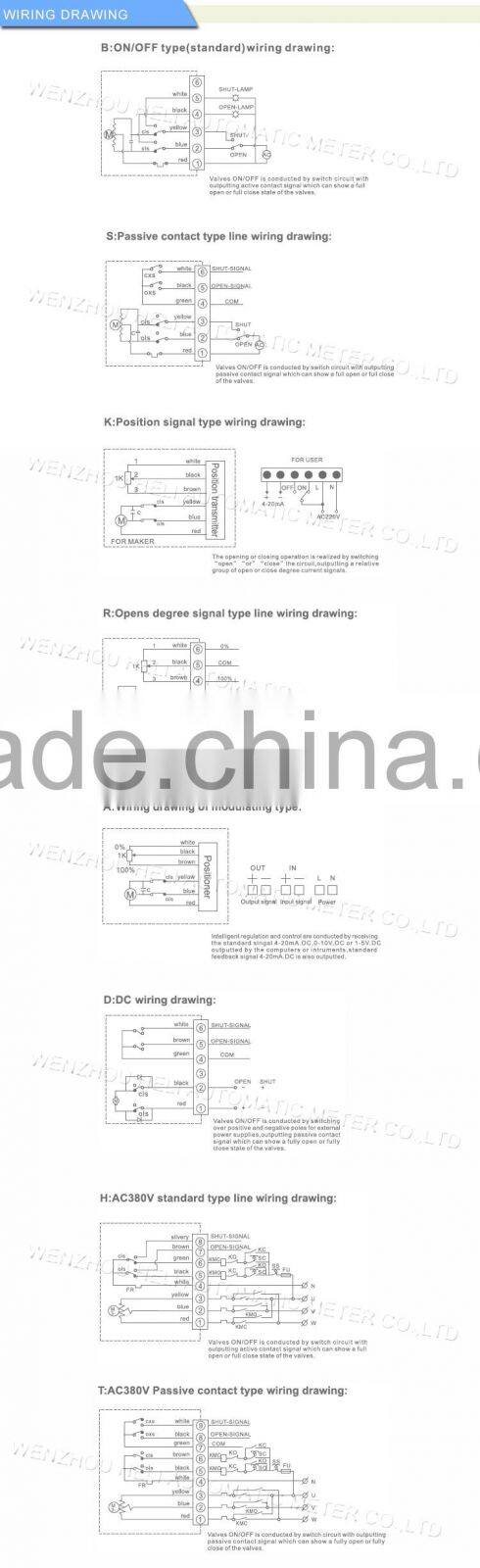

Circuit control | B,S,R,H,A,K,D,T | ||||||||
Rotary angle | 0-90° | ||||||||
Weight | 4 Kg | ||||||||
Voltage-with standing value | 500VAC/1min | 1500VAC/1min | |||||||
Insulated resistance | 100MΩ/300VDC | 100MΩ/500VDC | |||||||
Protection class | IP67 | ||||||||
Surrounding Temperature | -25°C~60°C(The other temperature can be customized) | ||||||||
Installation angle | Any angle | ||||||||
Case material | Aluminium die-casting components | ||||||||
Optional function | Overload protection, heater | ||||||||
